Hard Pack

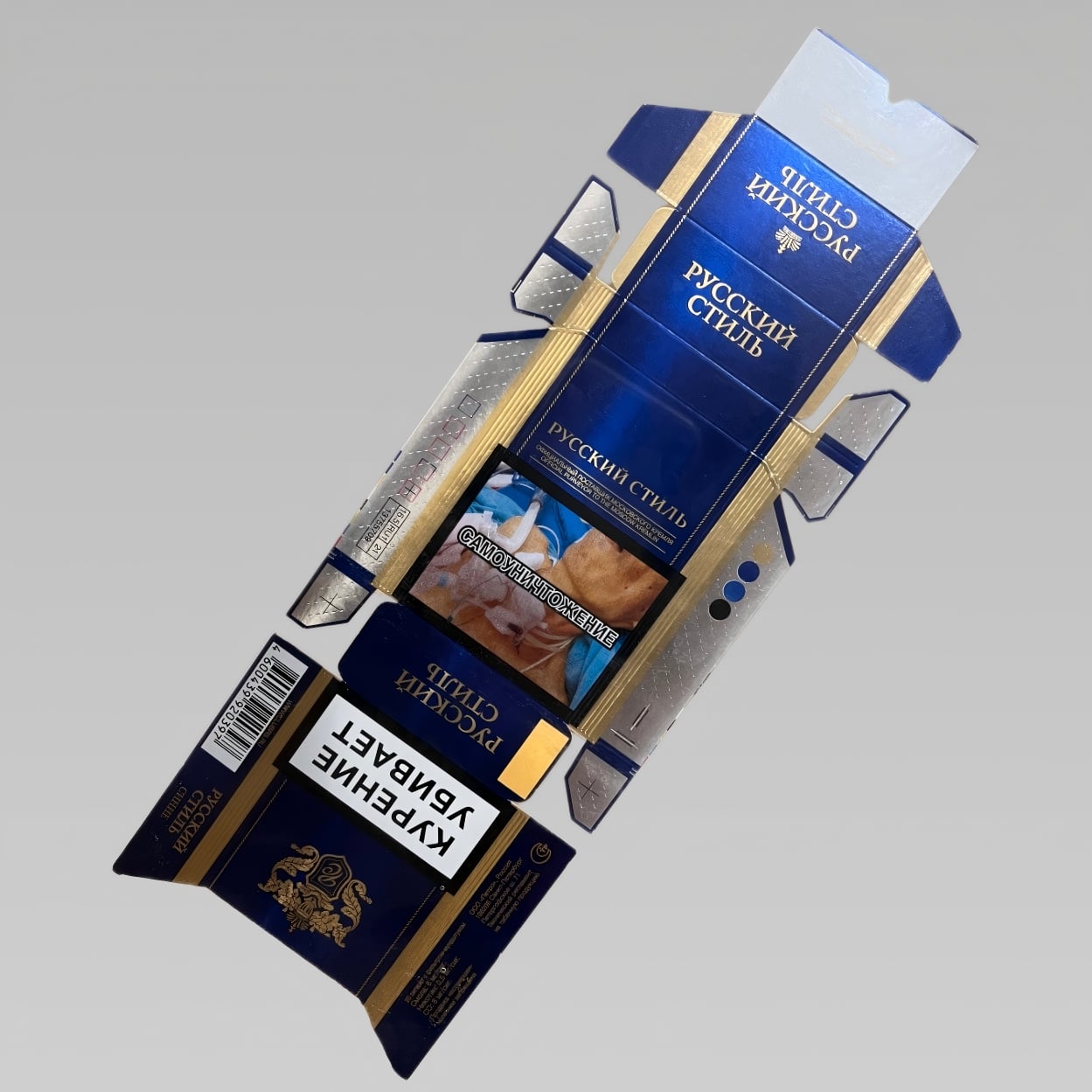

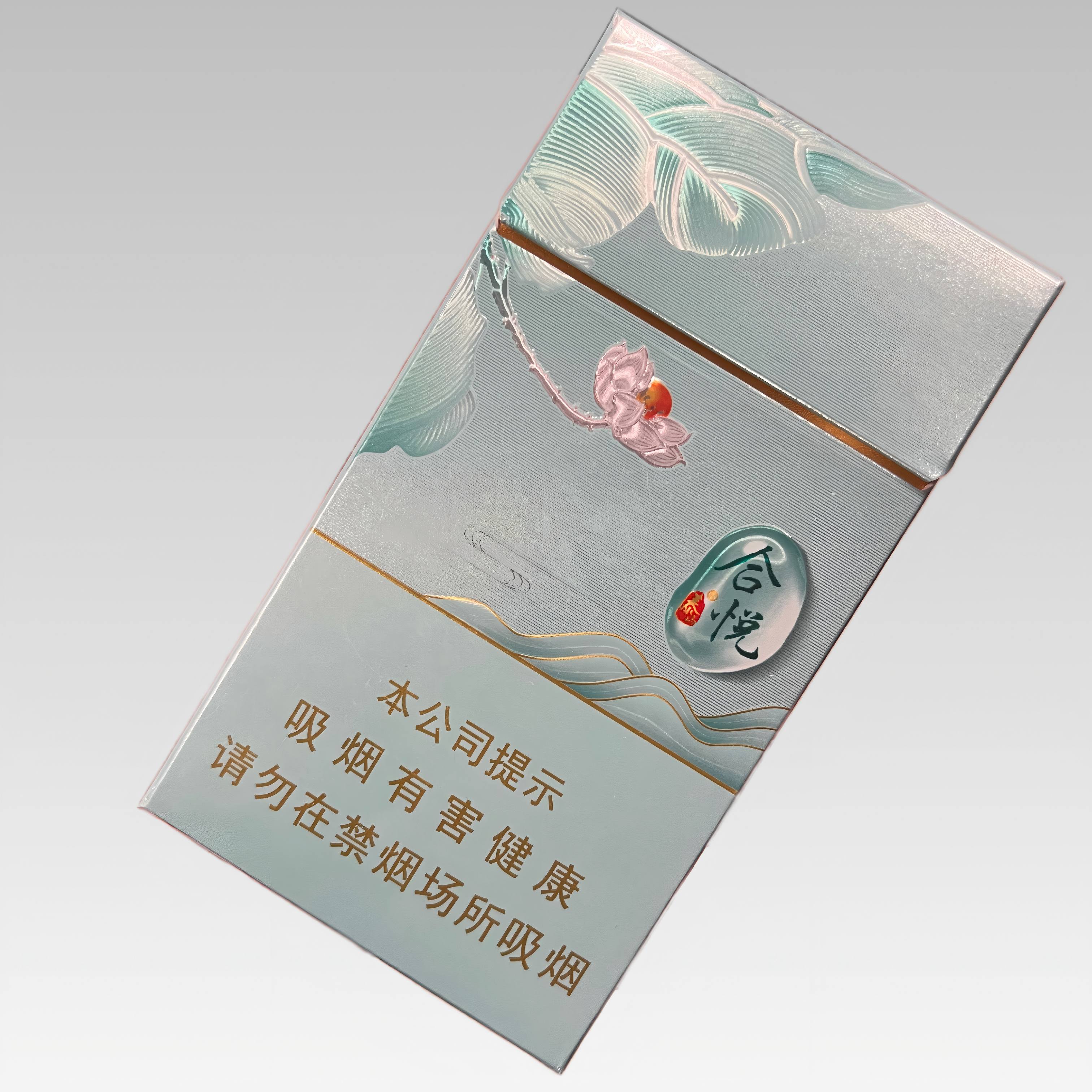

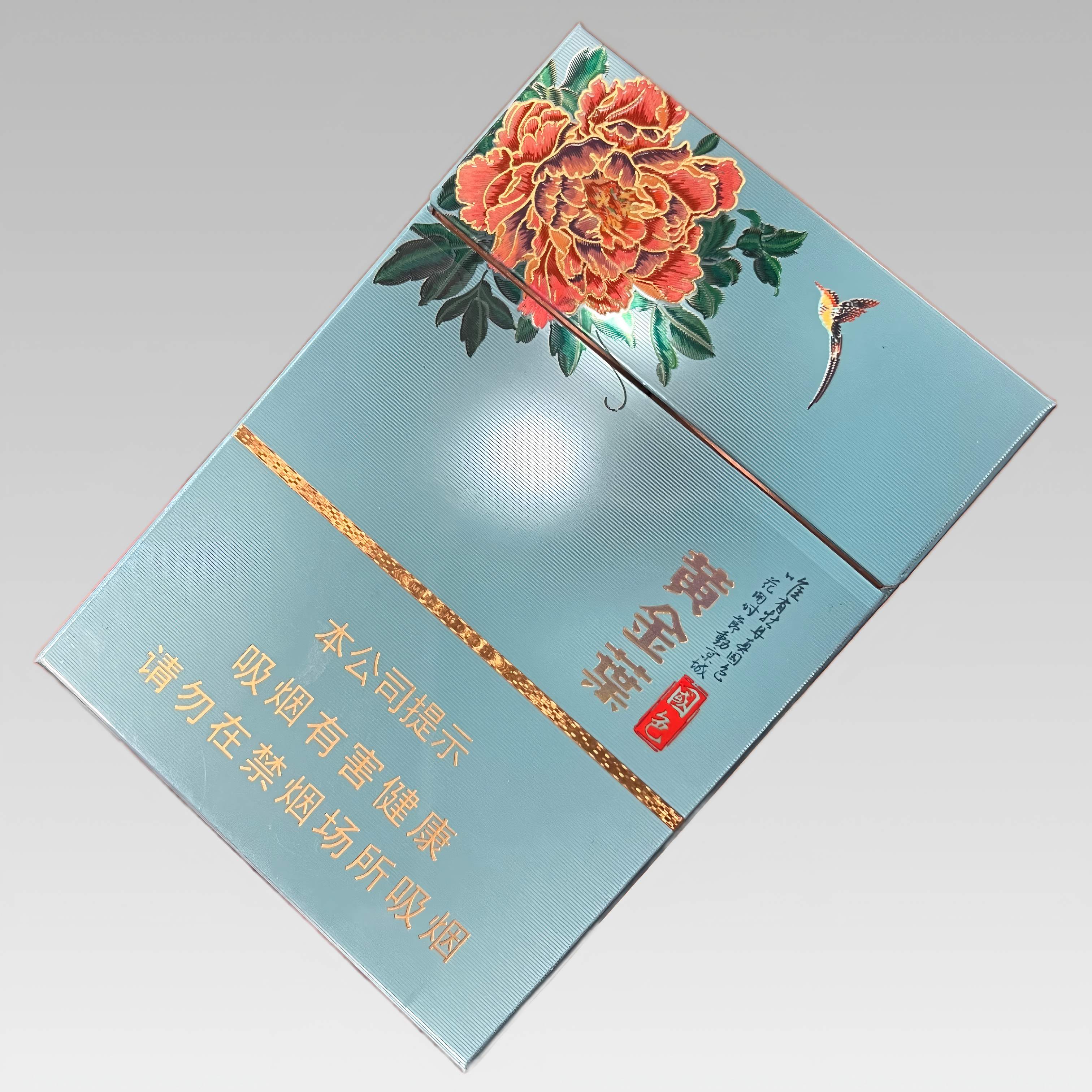

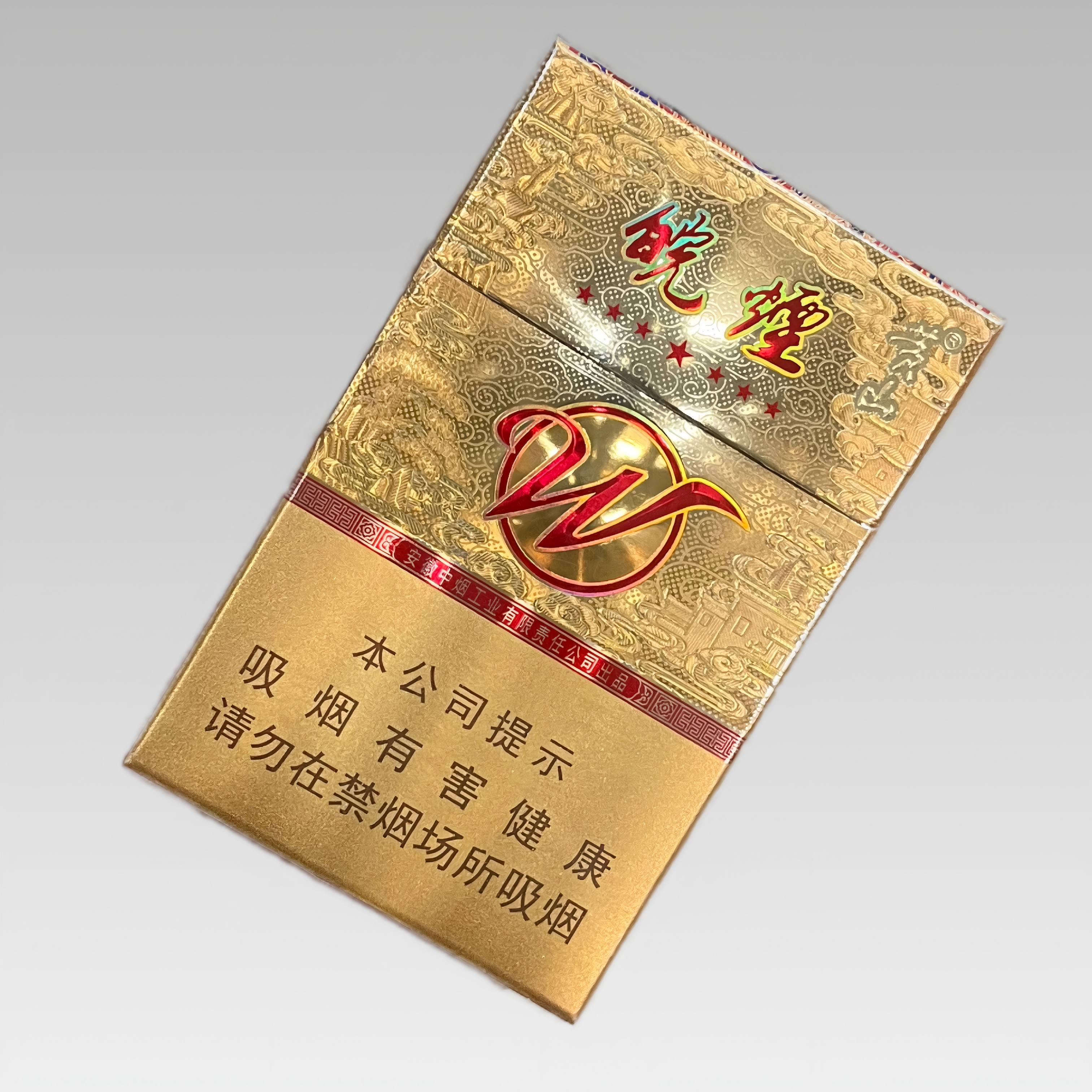

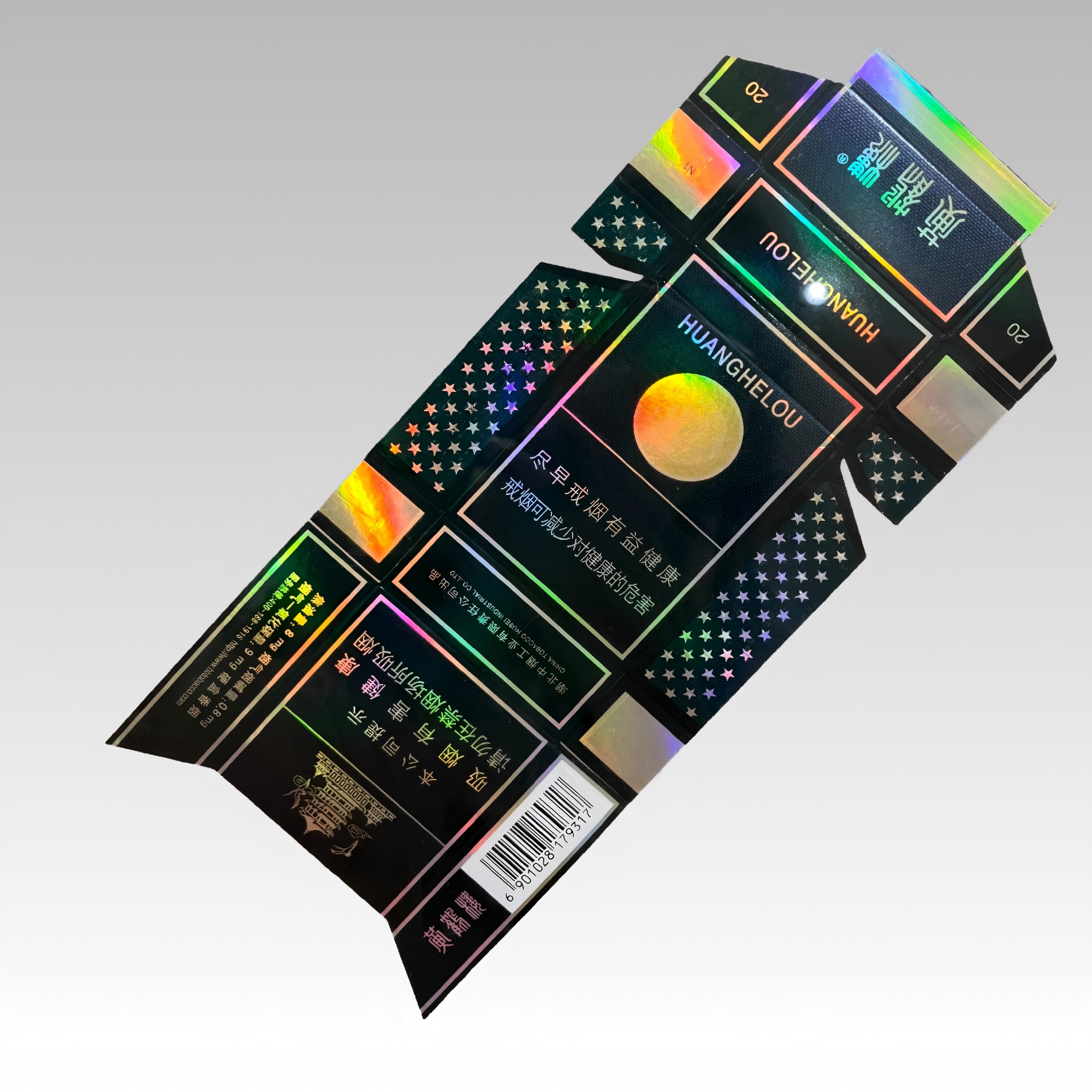

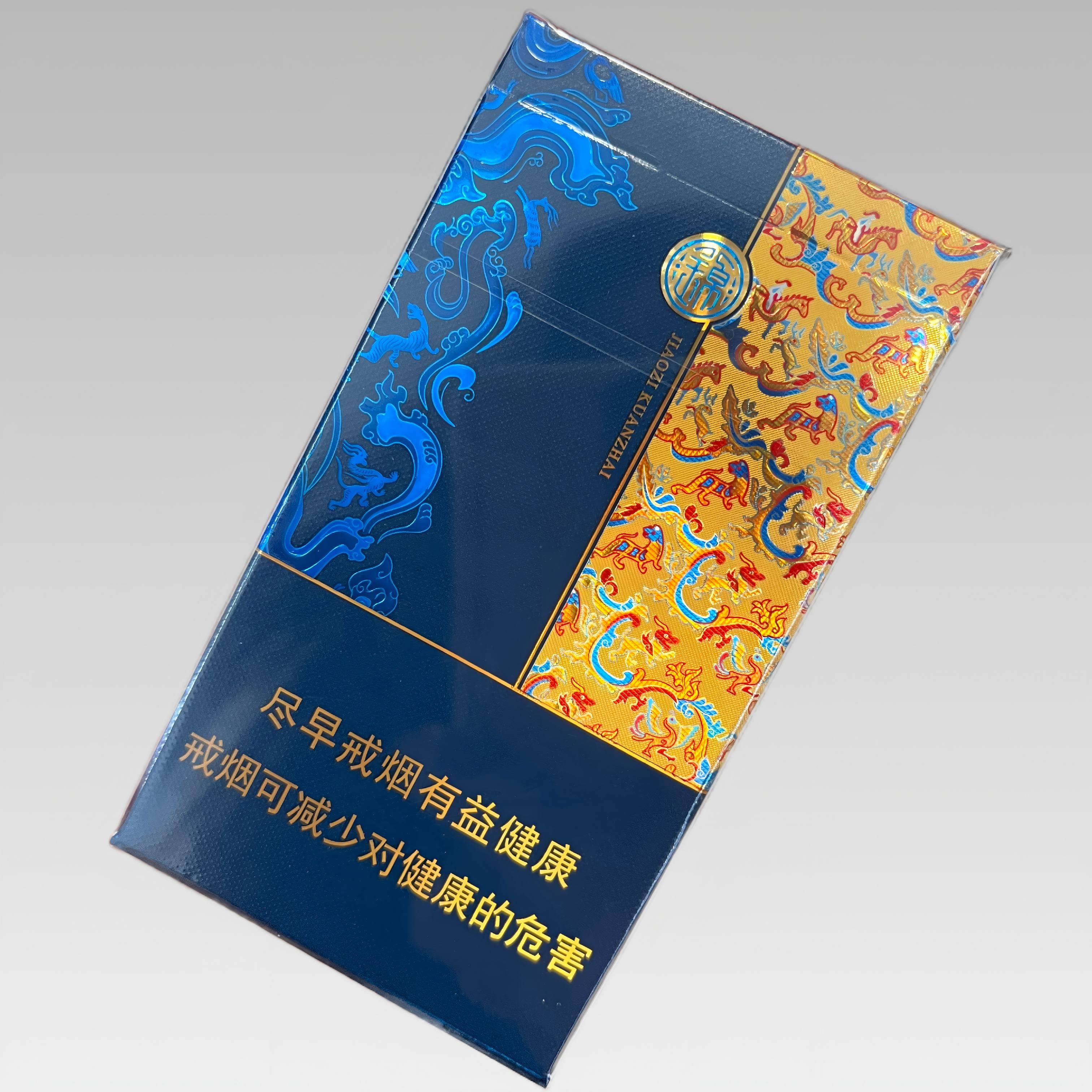

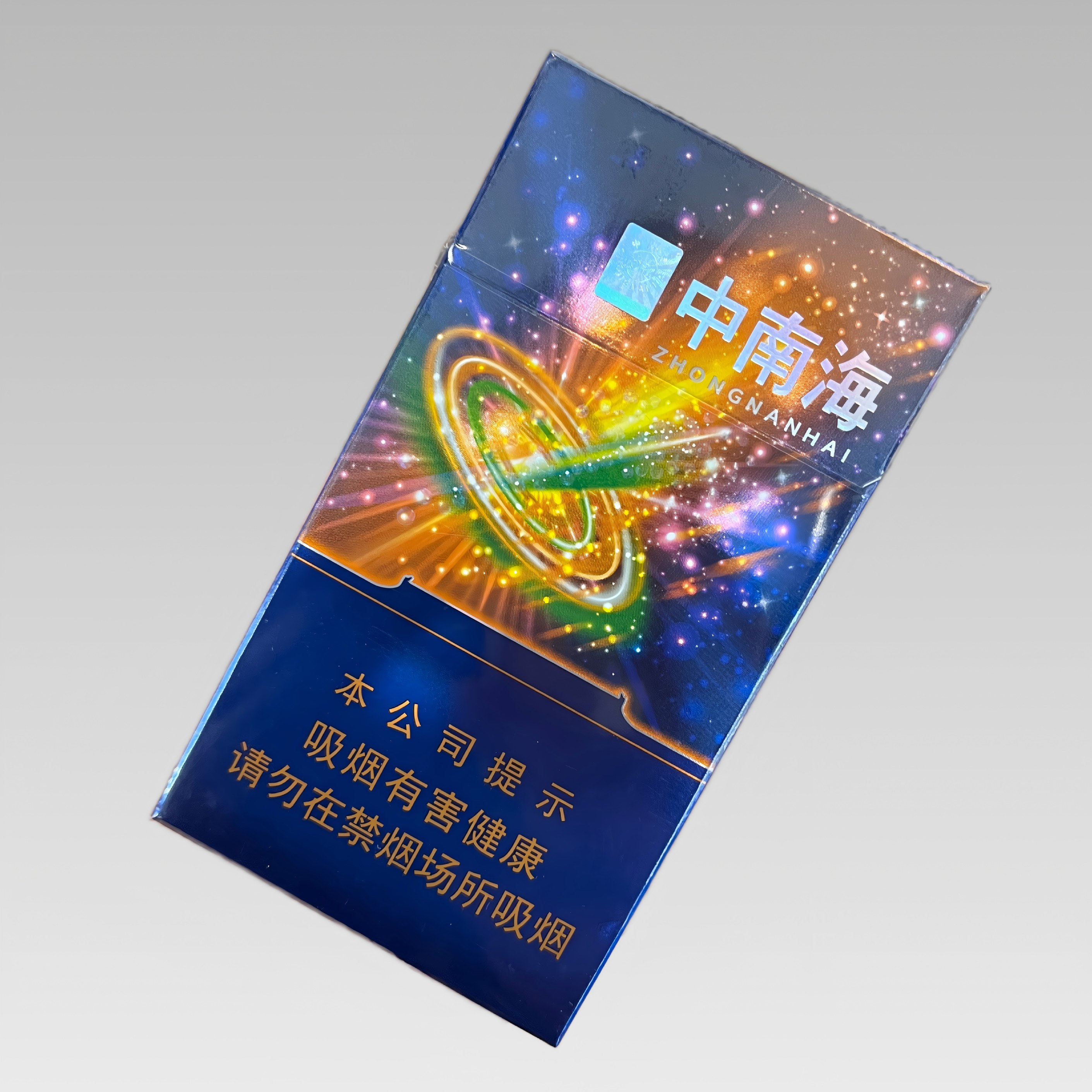

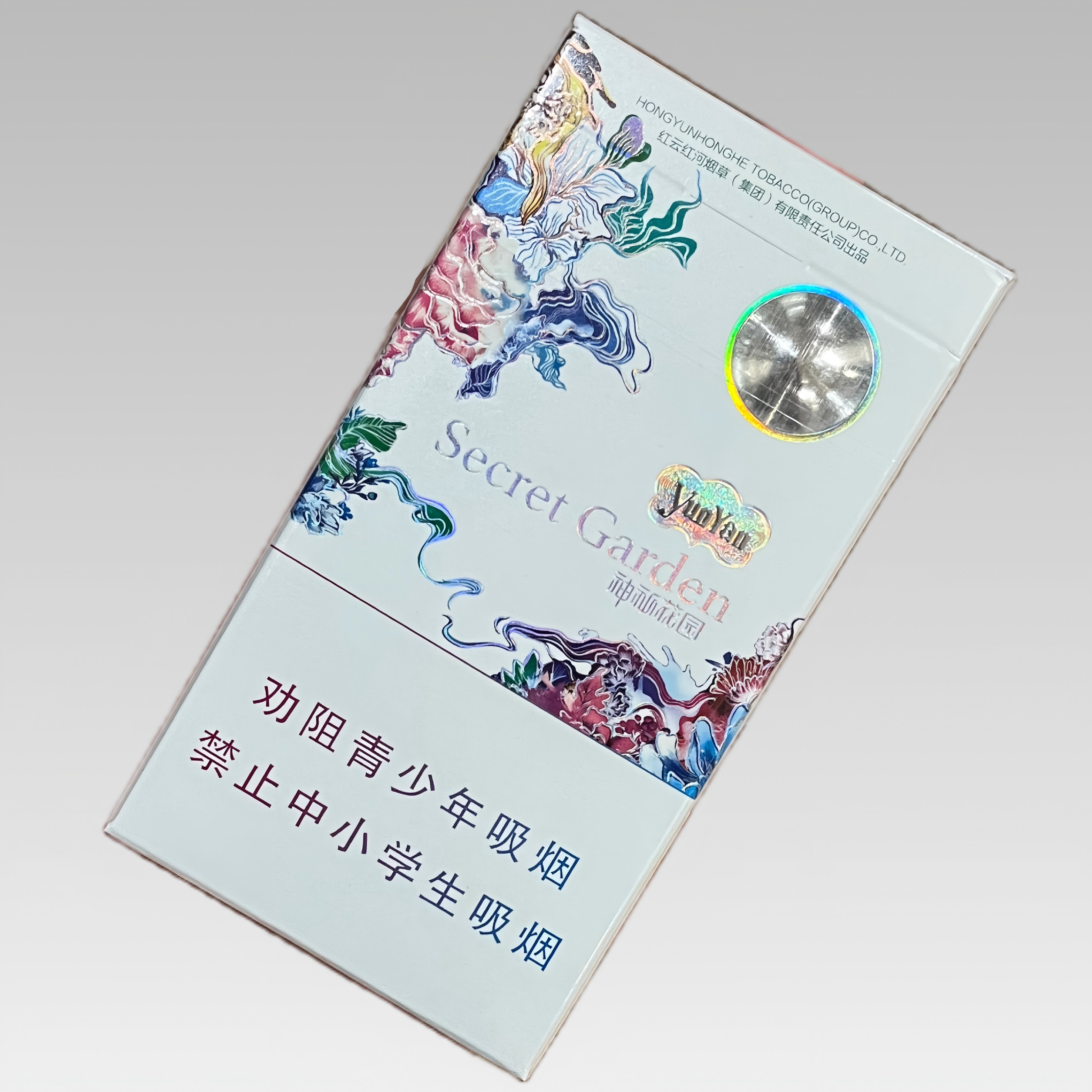

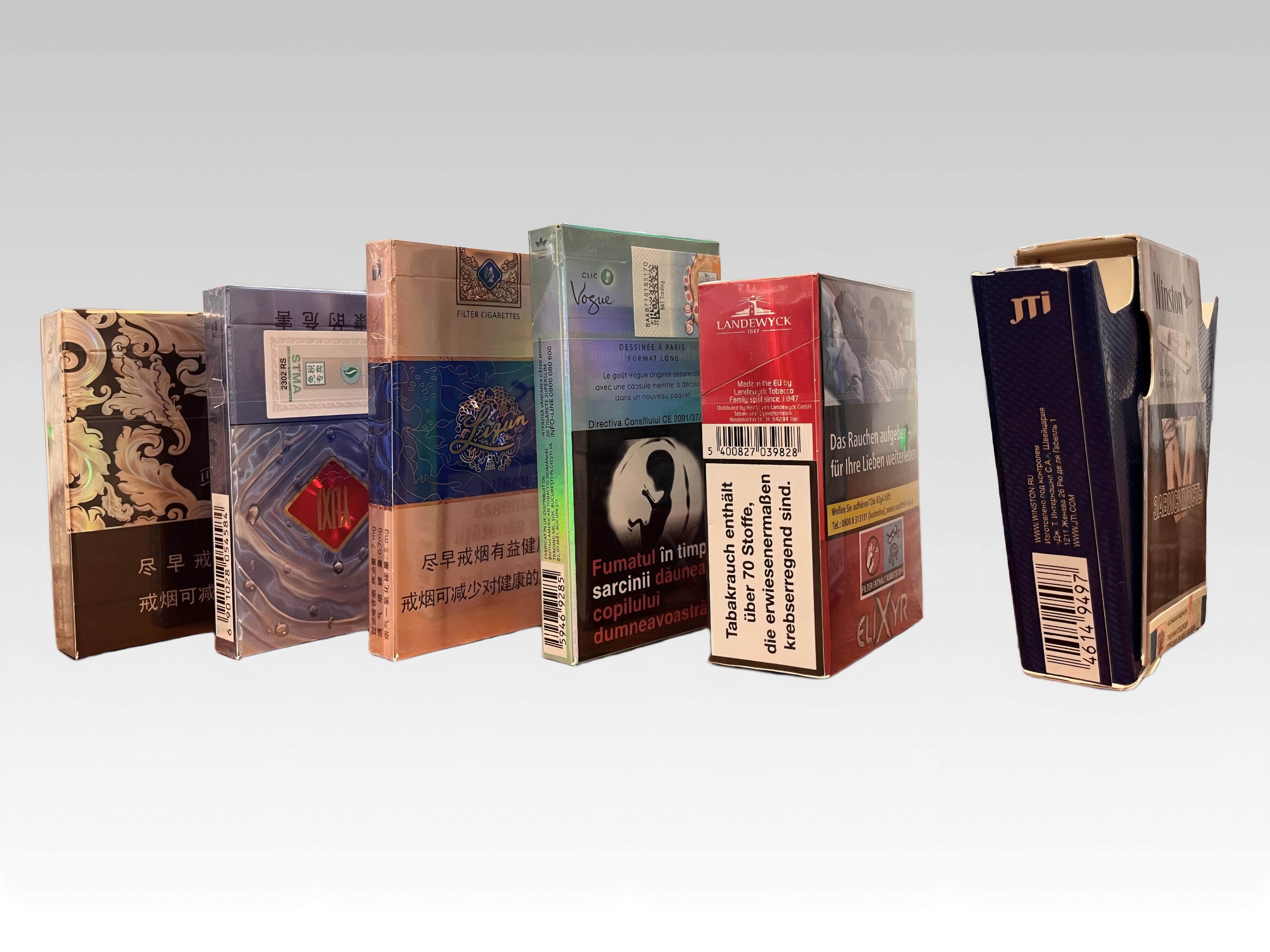

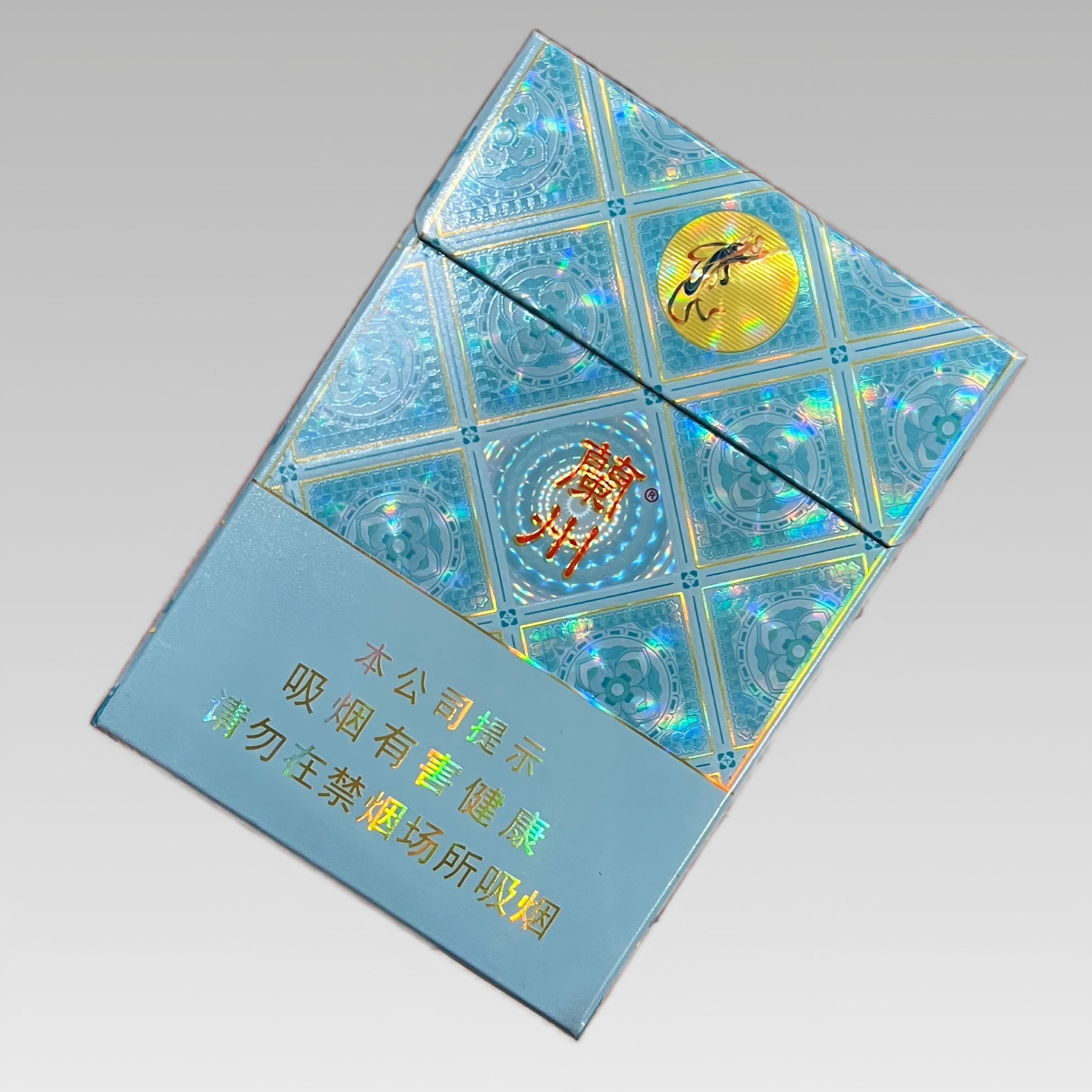

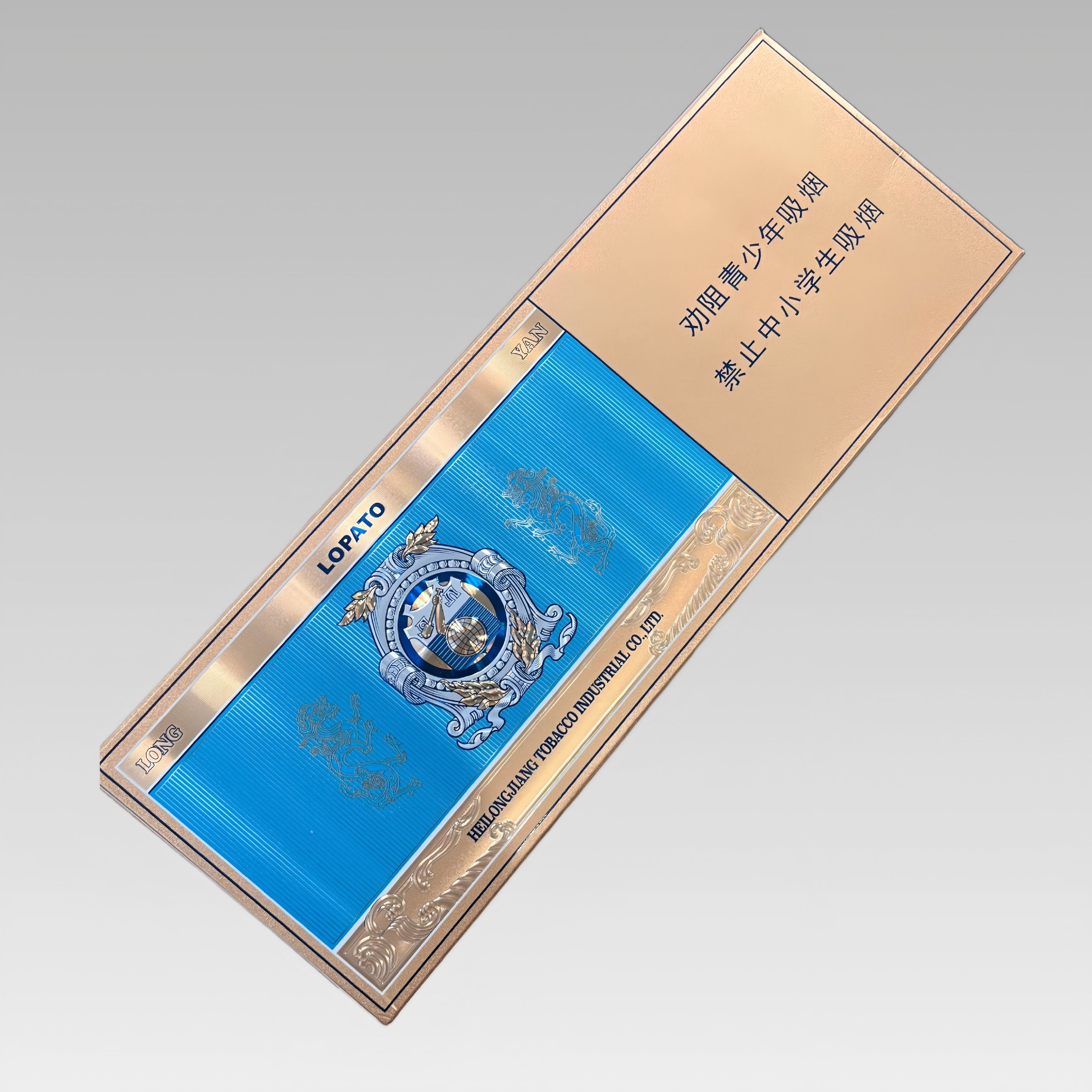

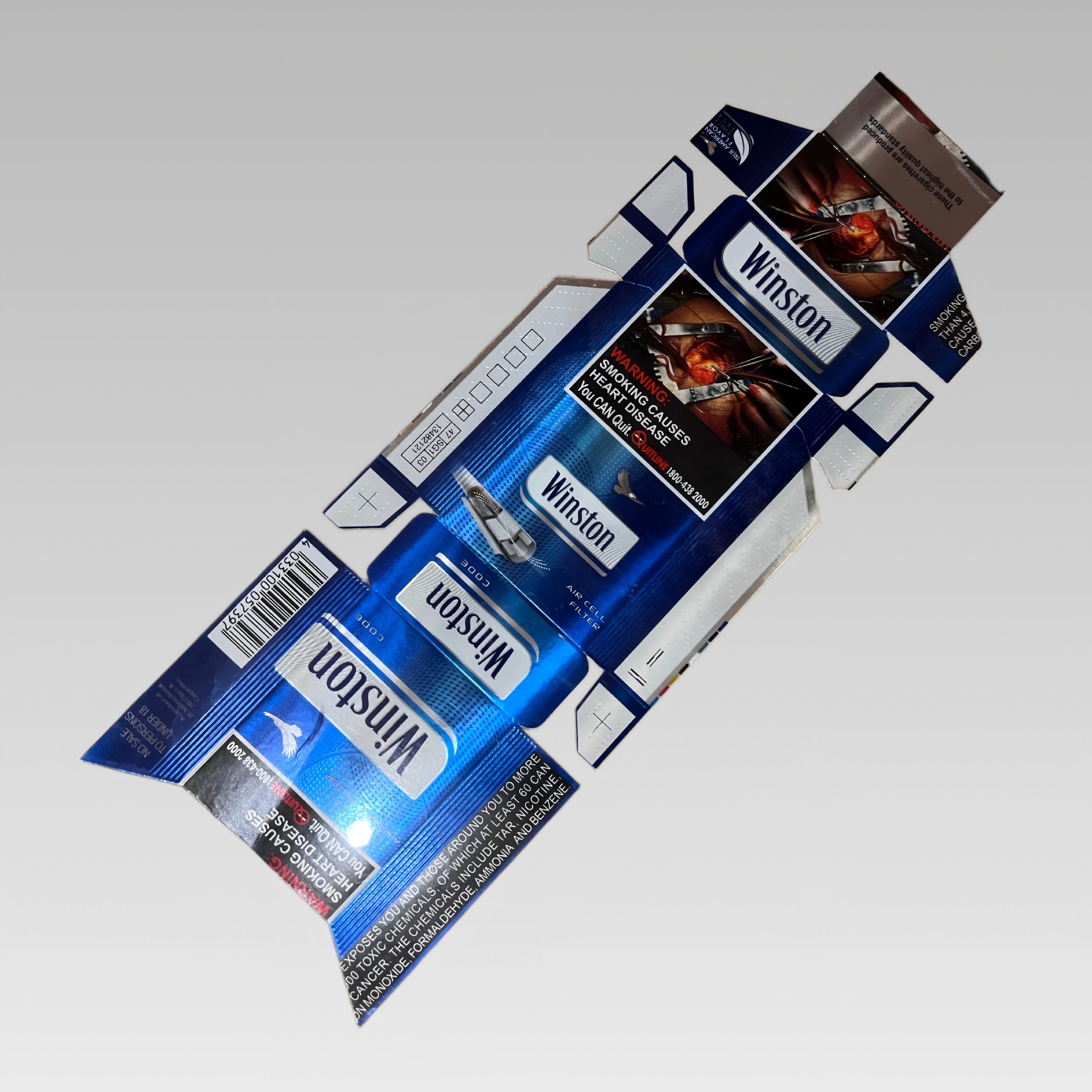

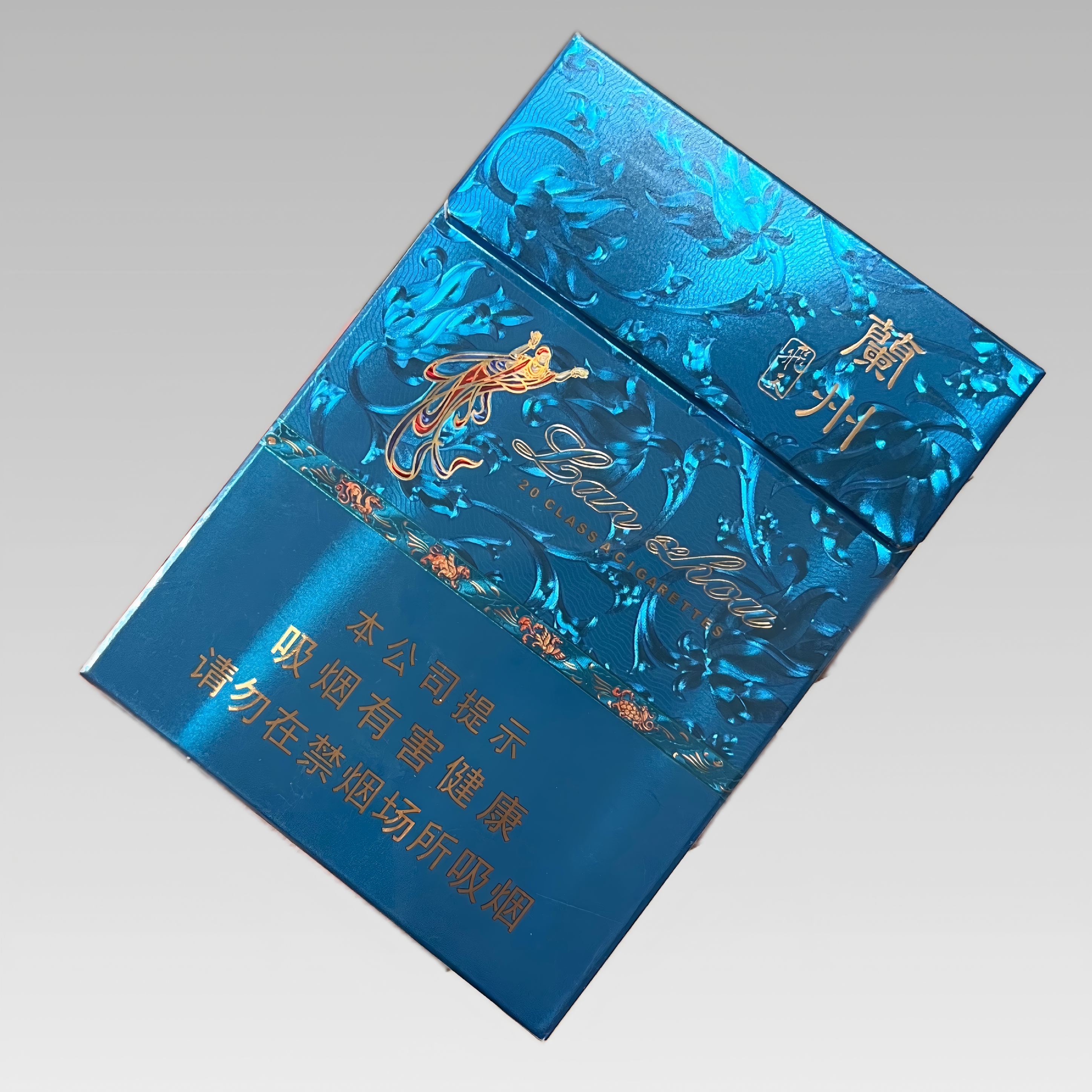

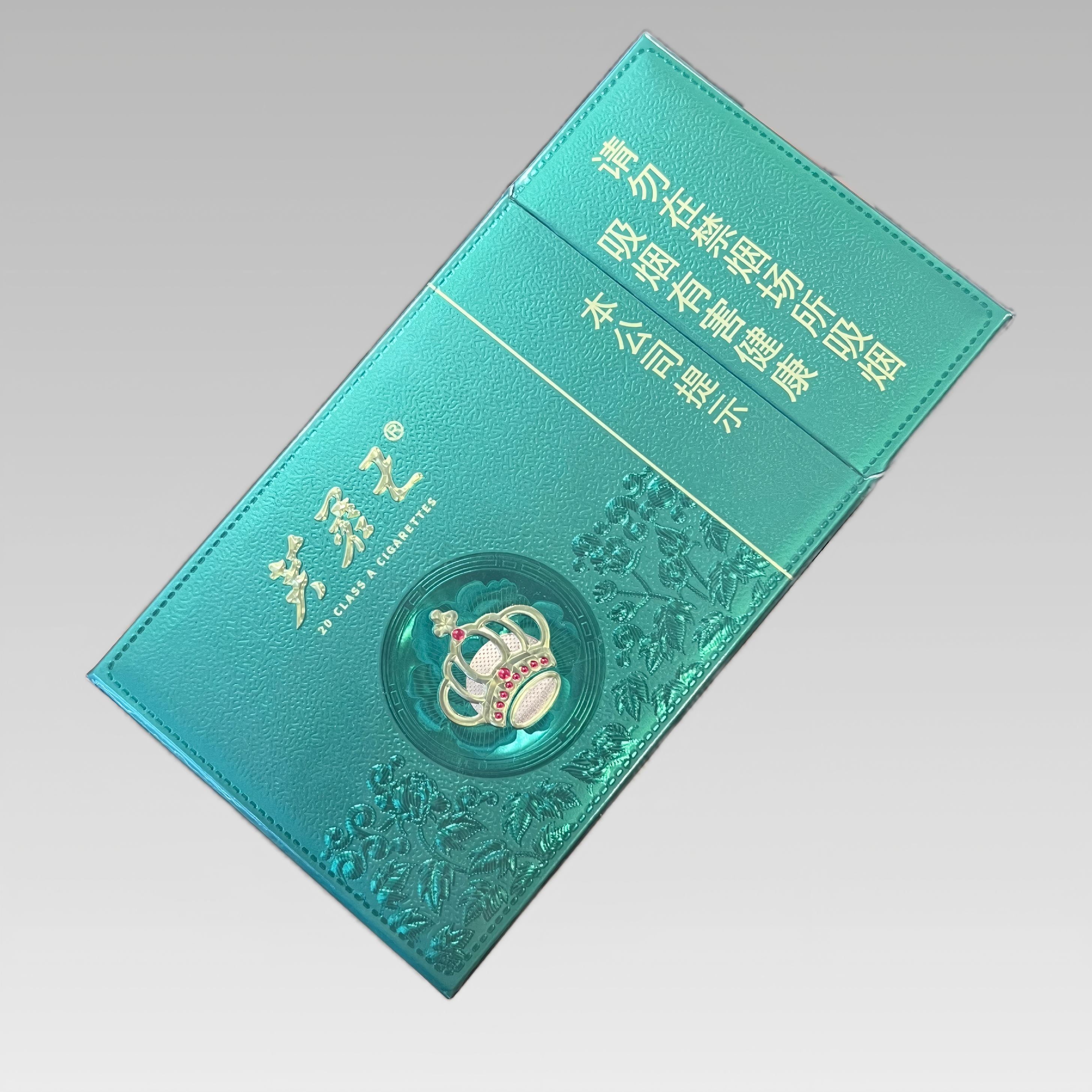

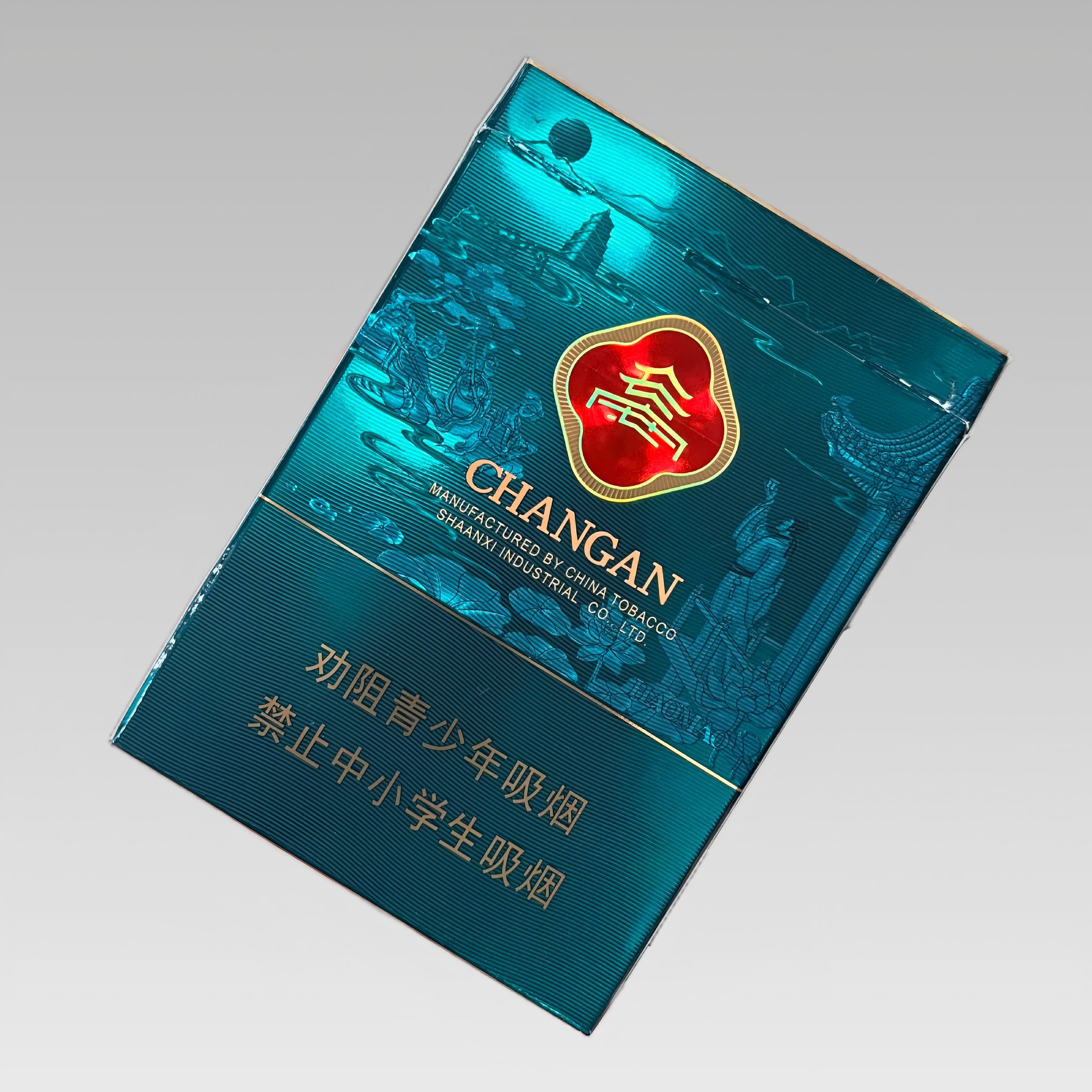

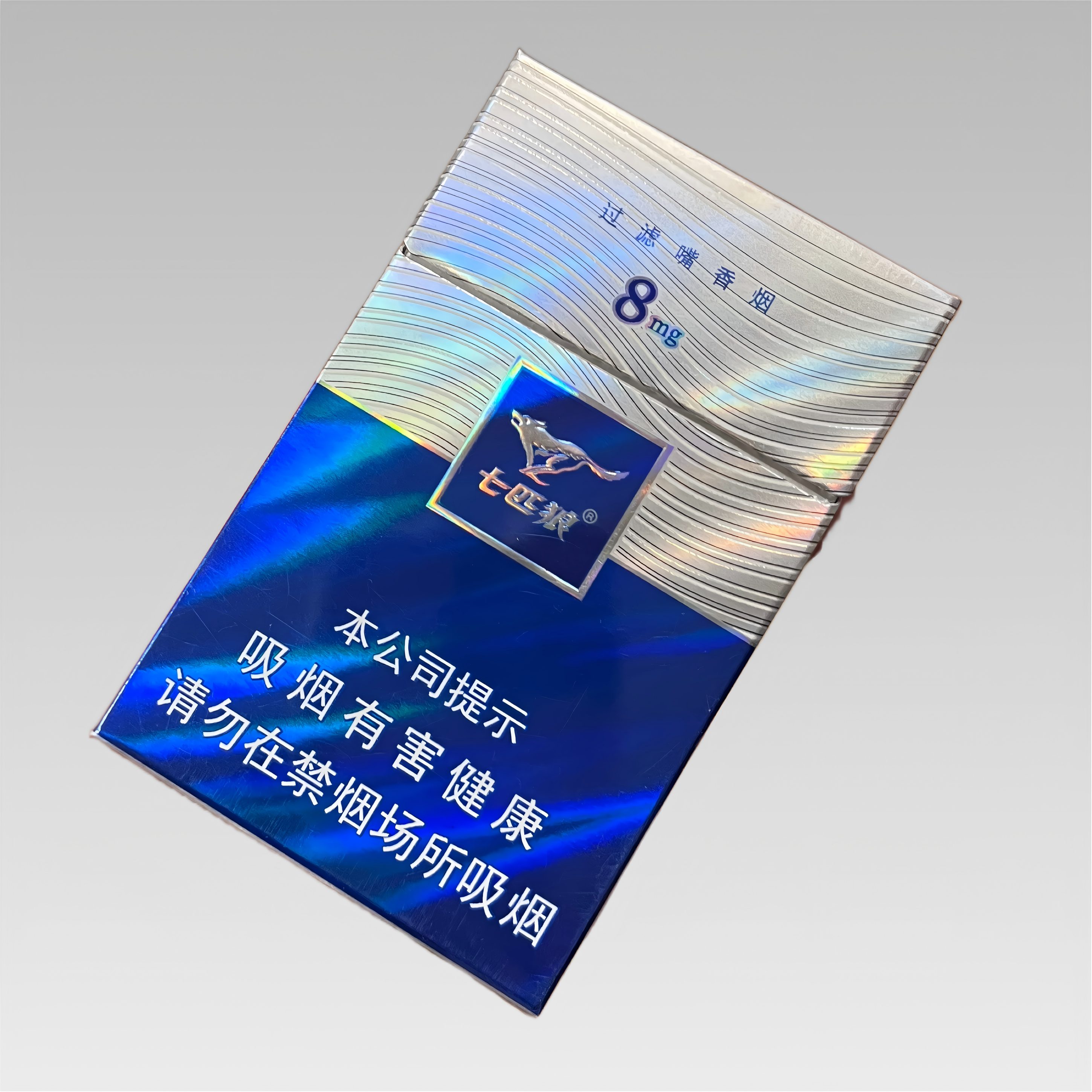

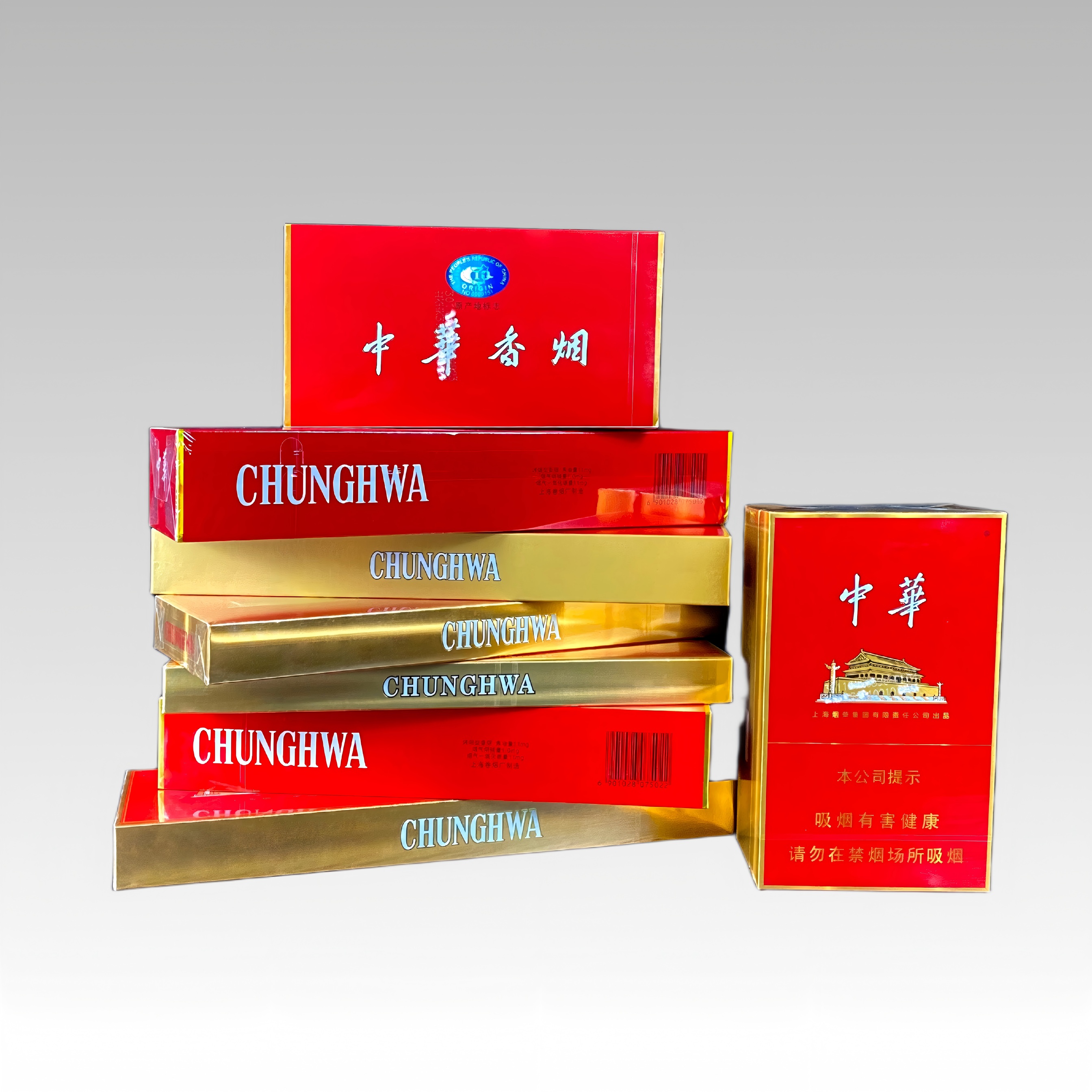

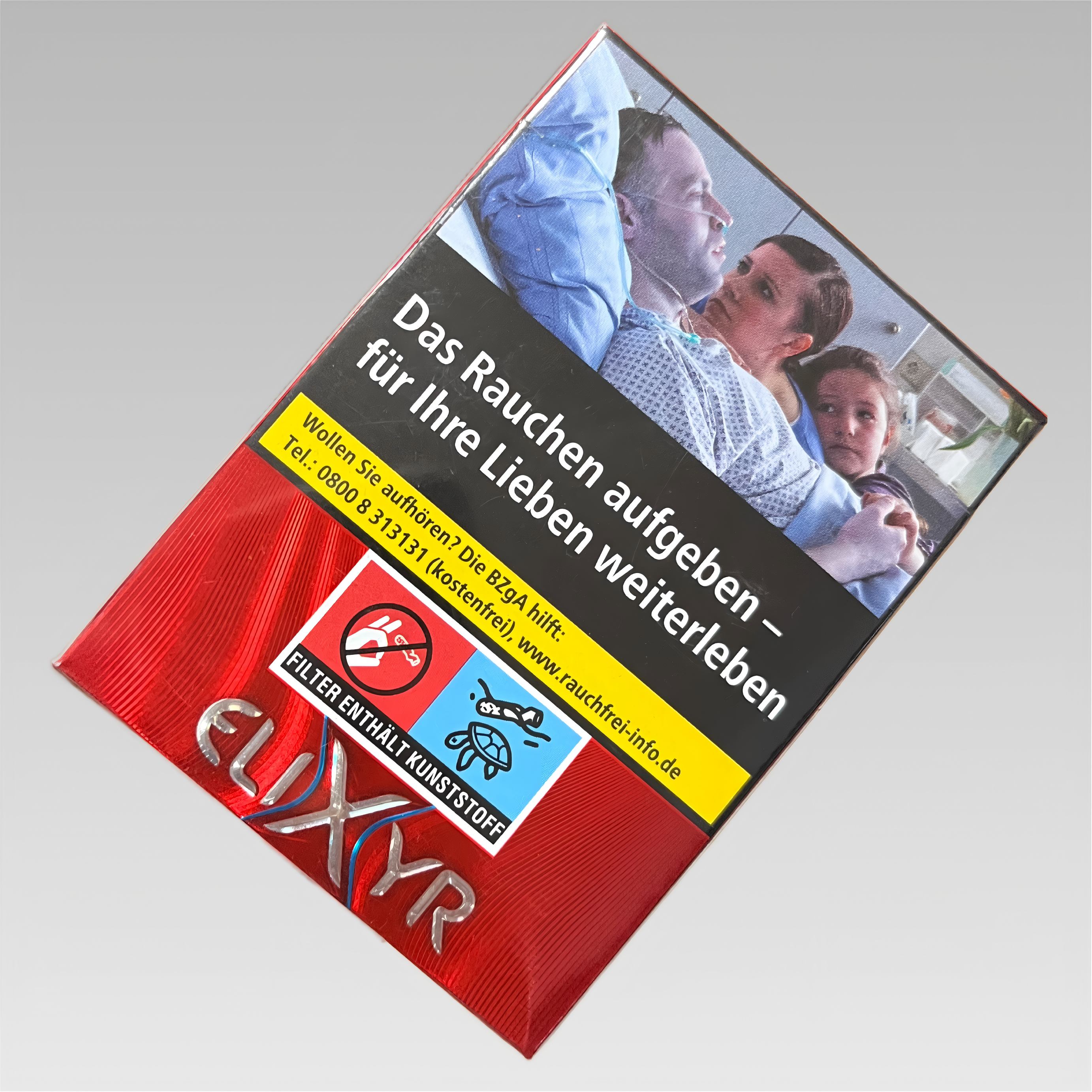

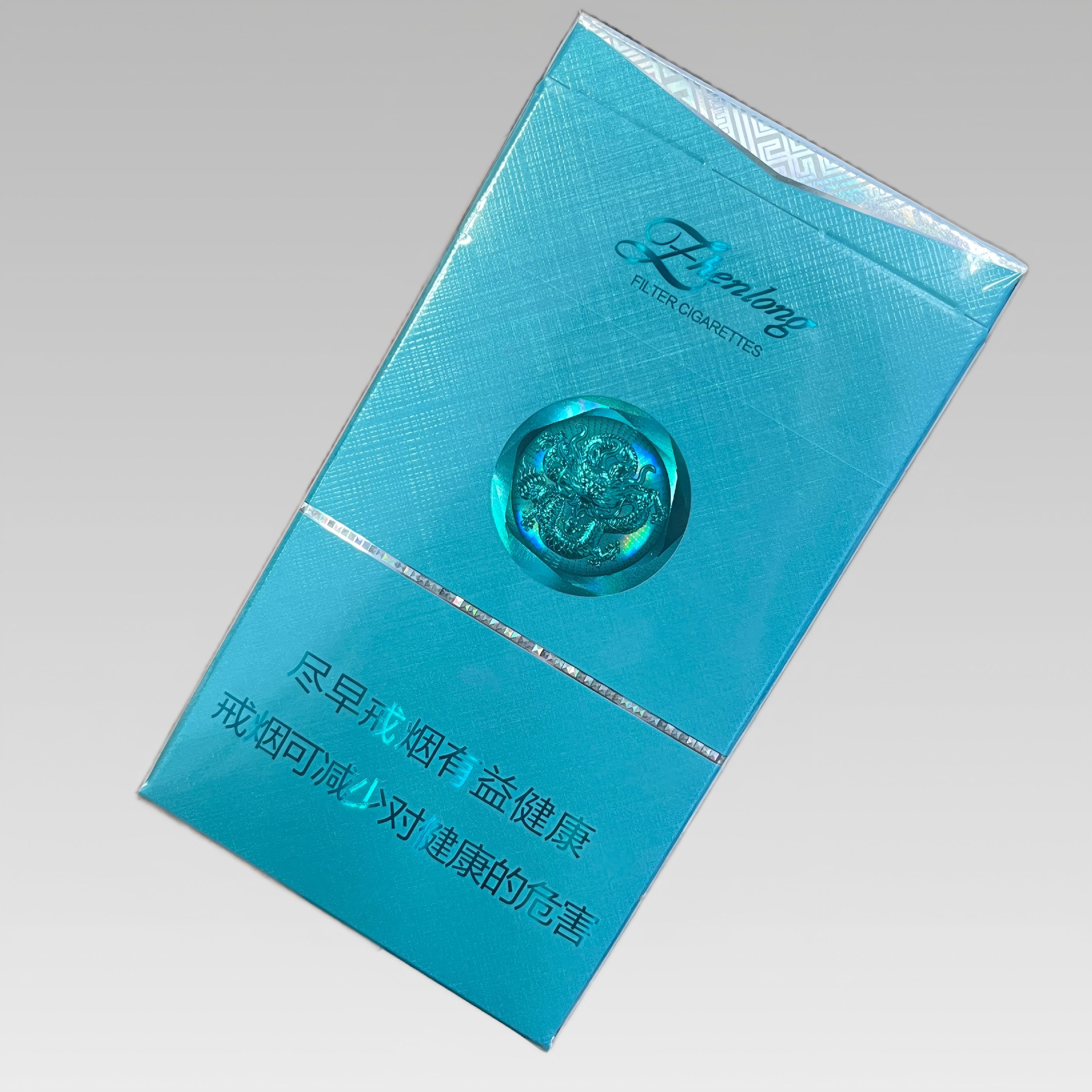

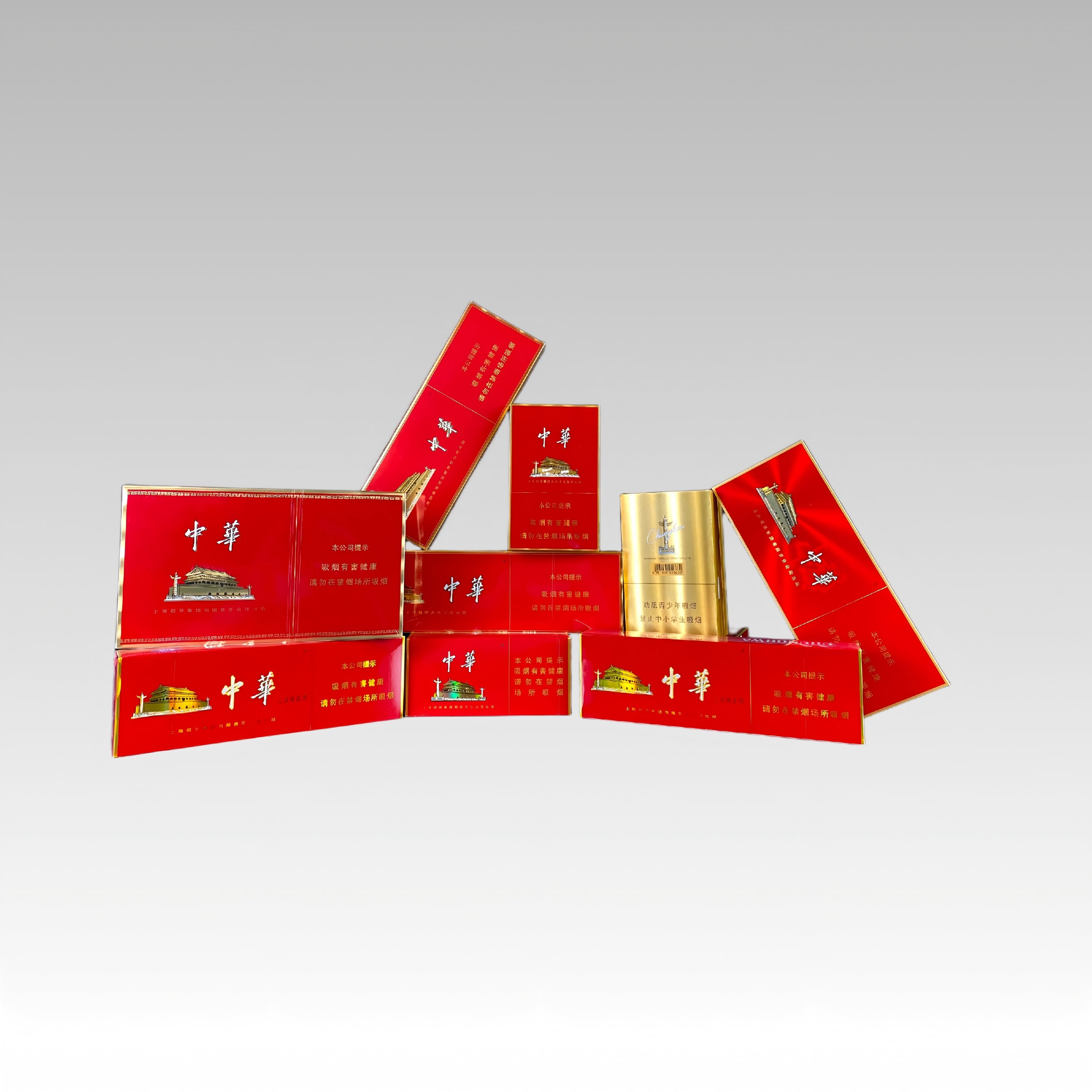

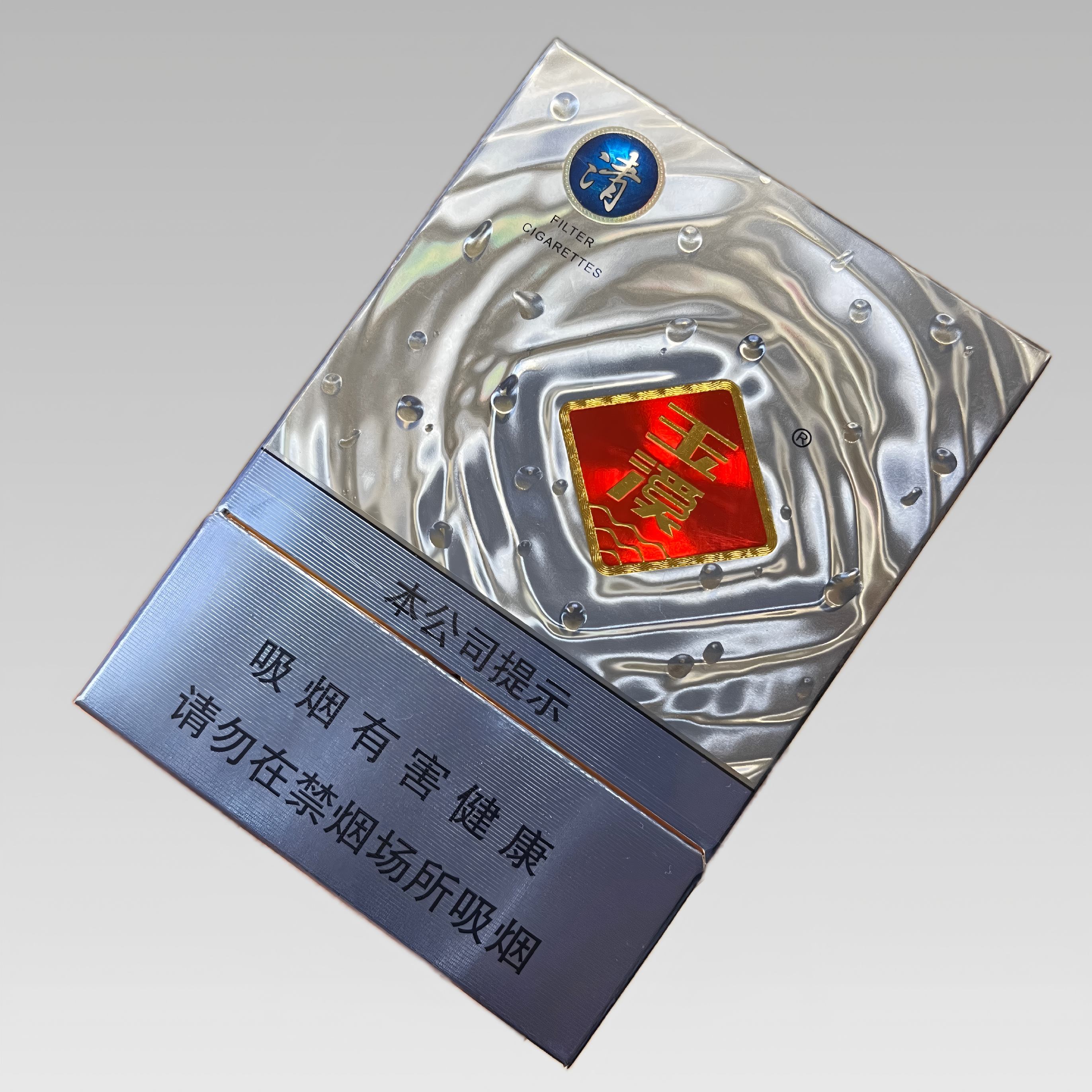

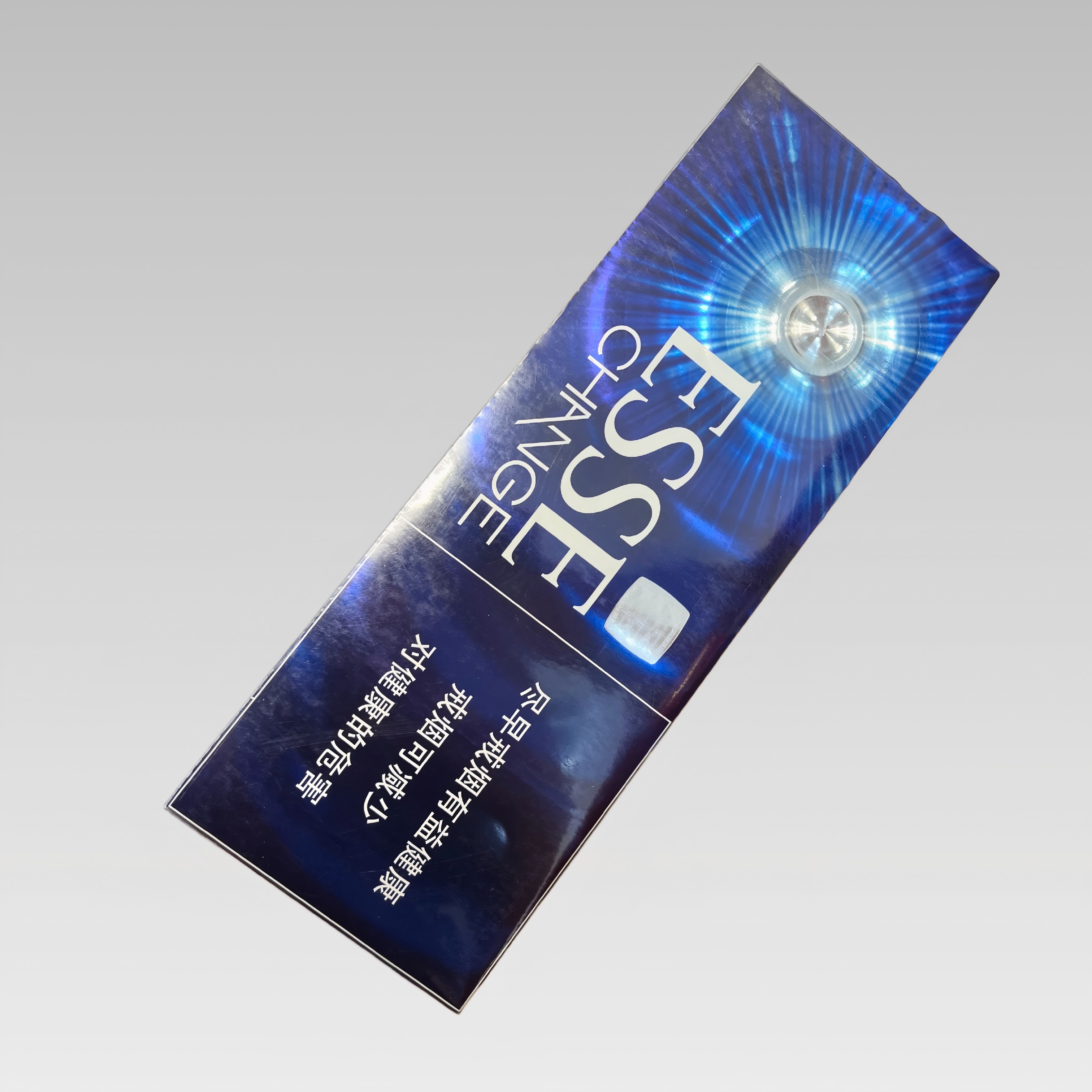

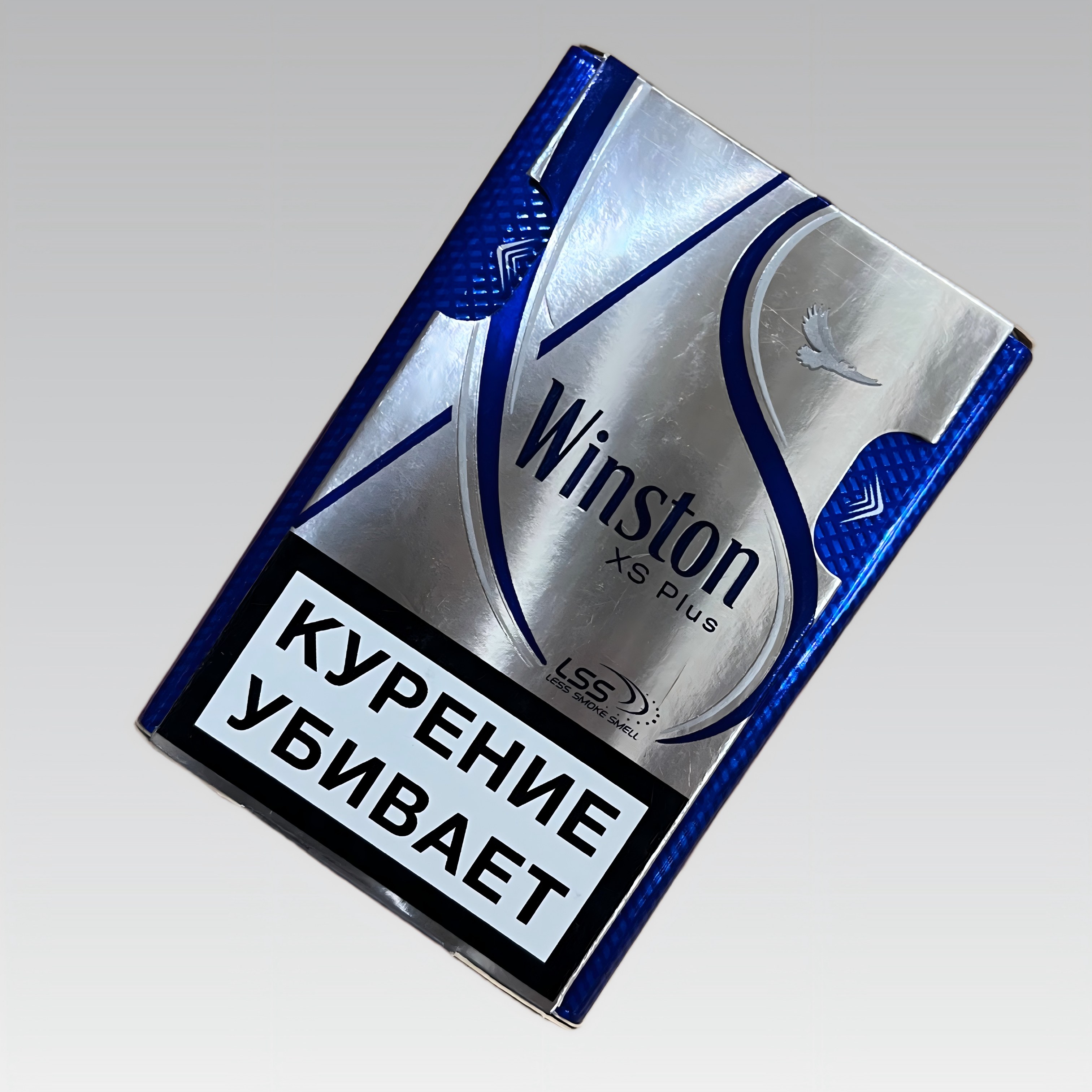

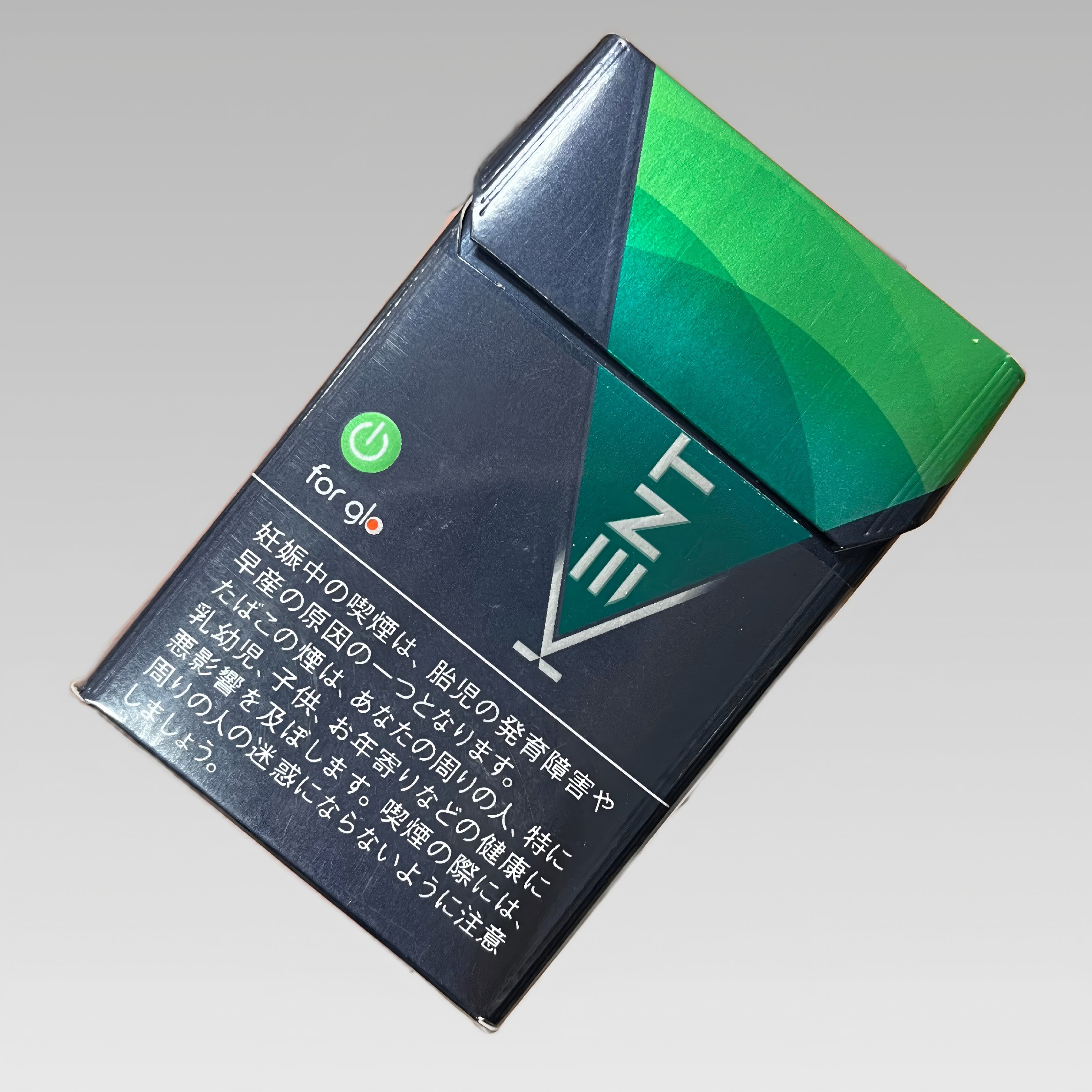

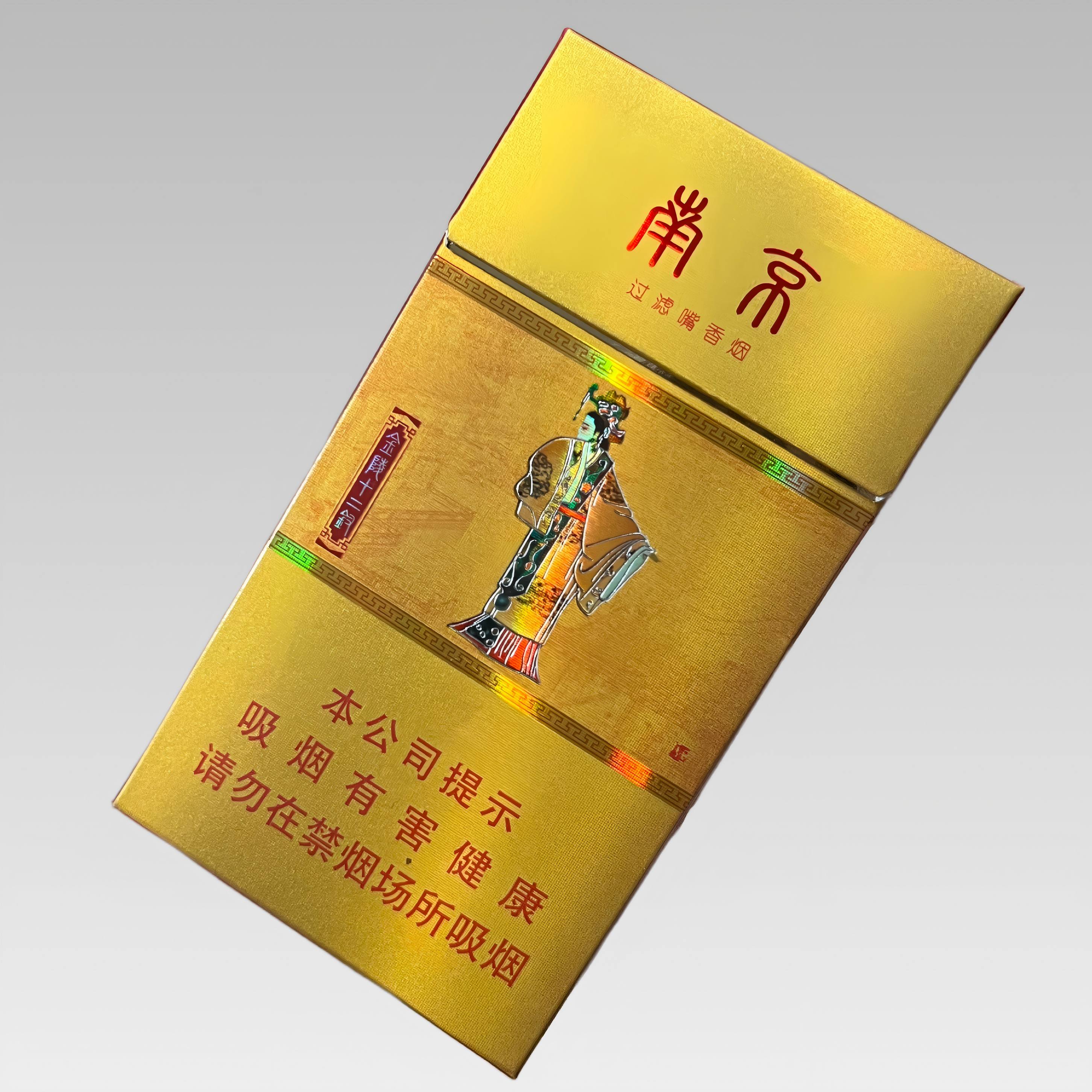

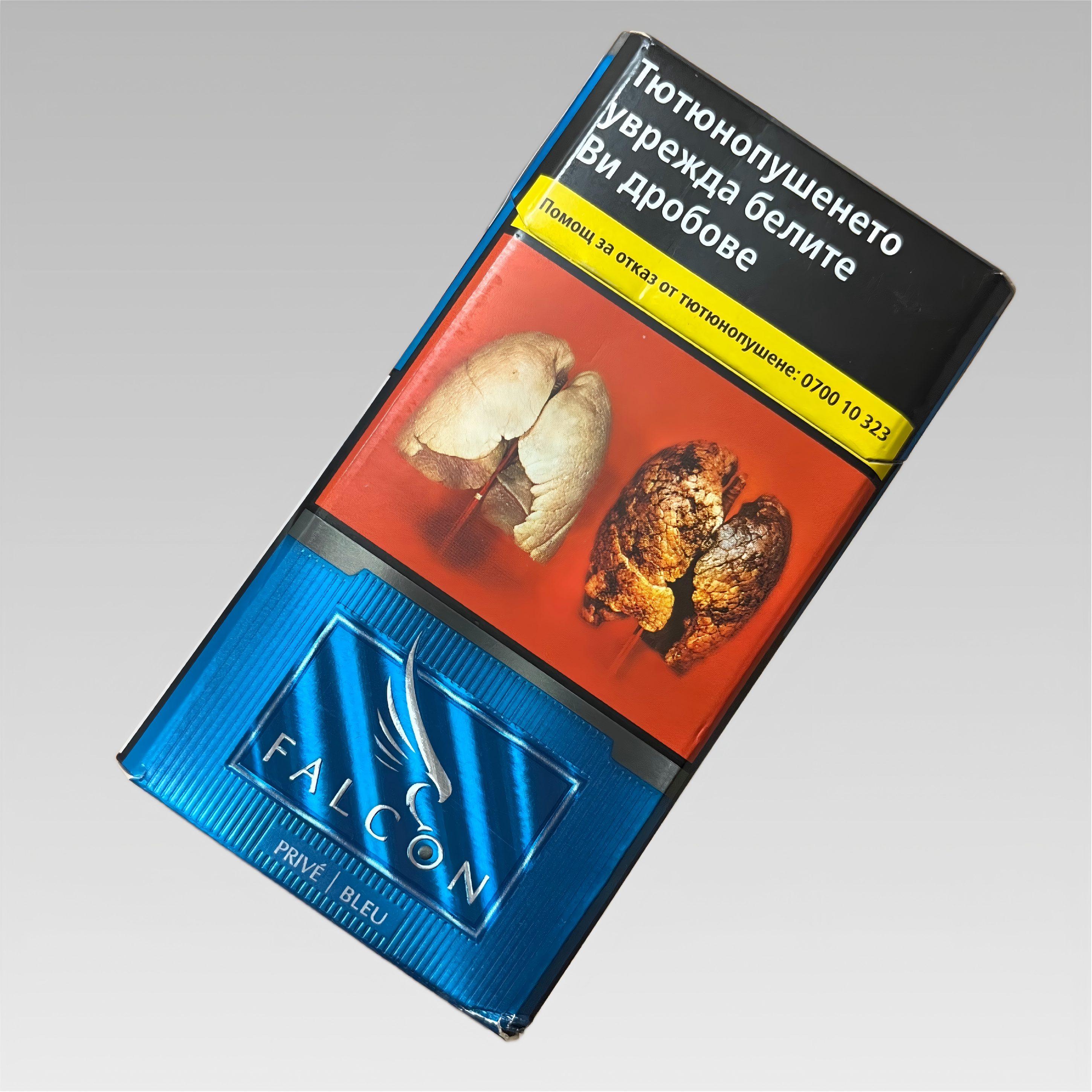

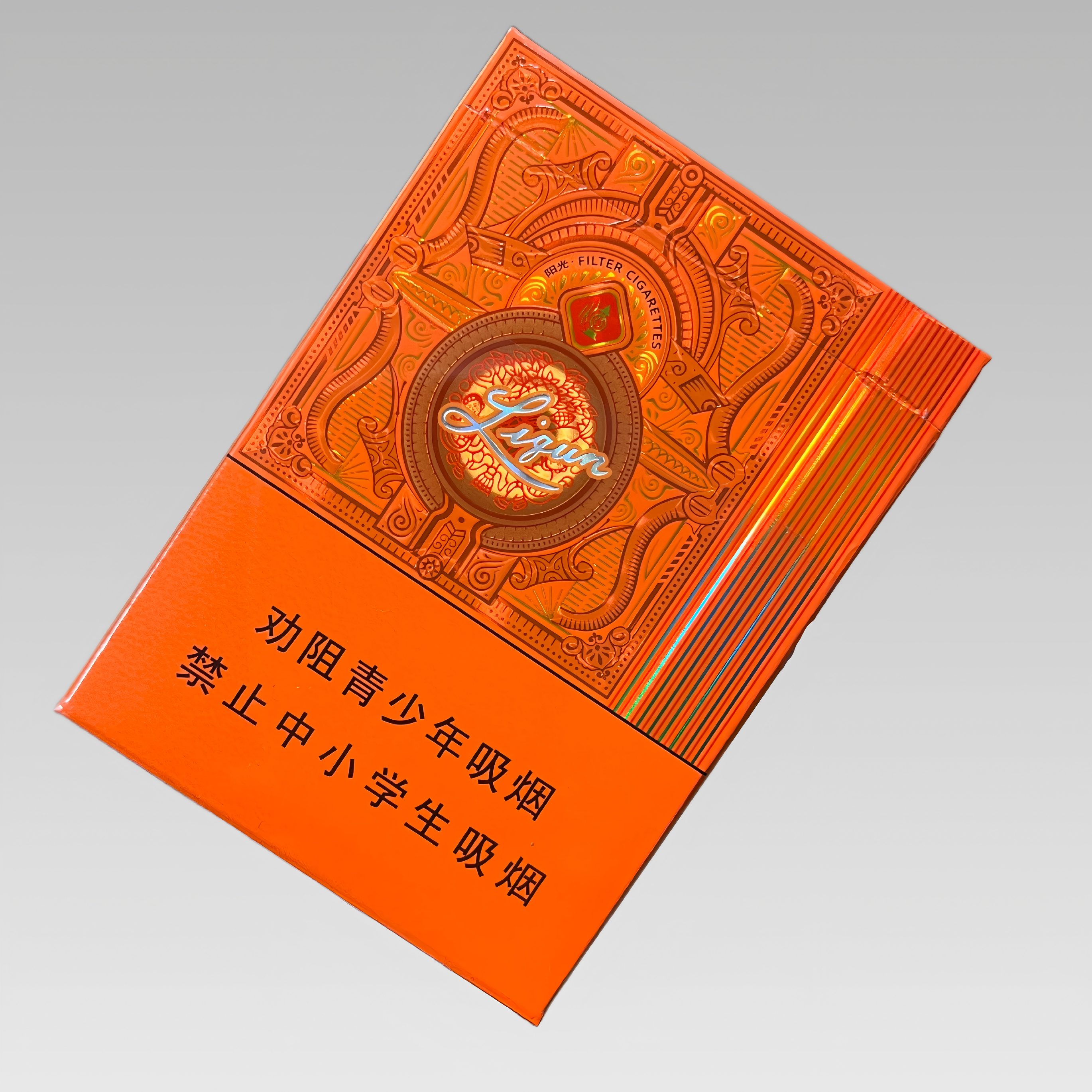

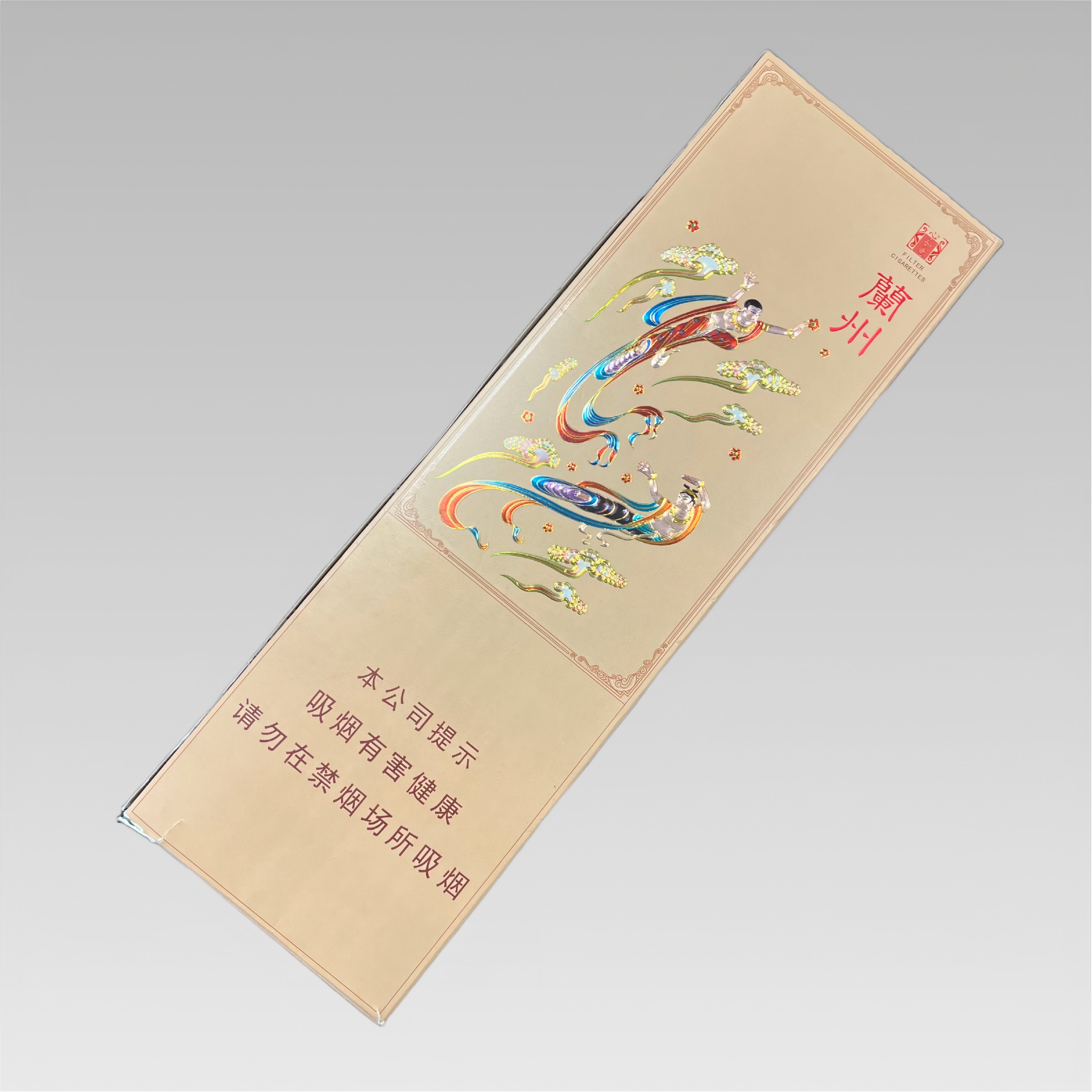

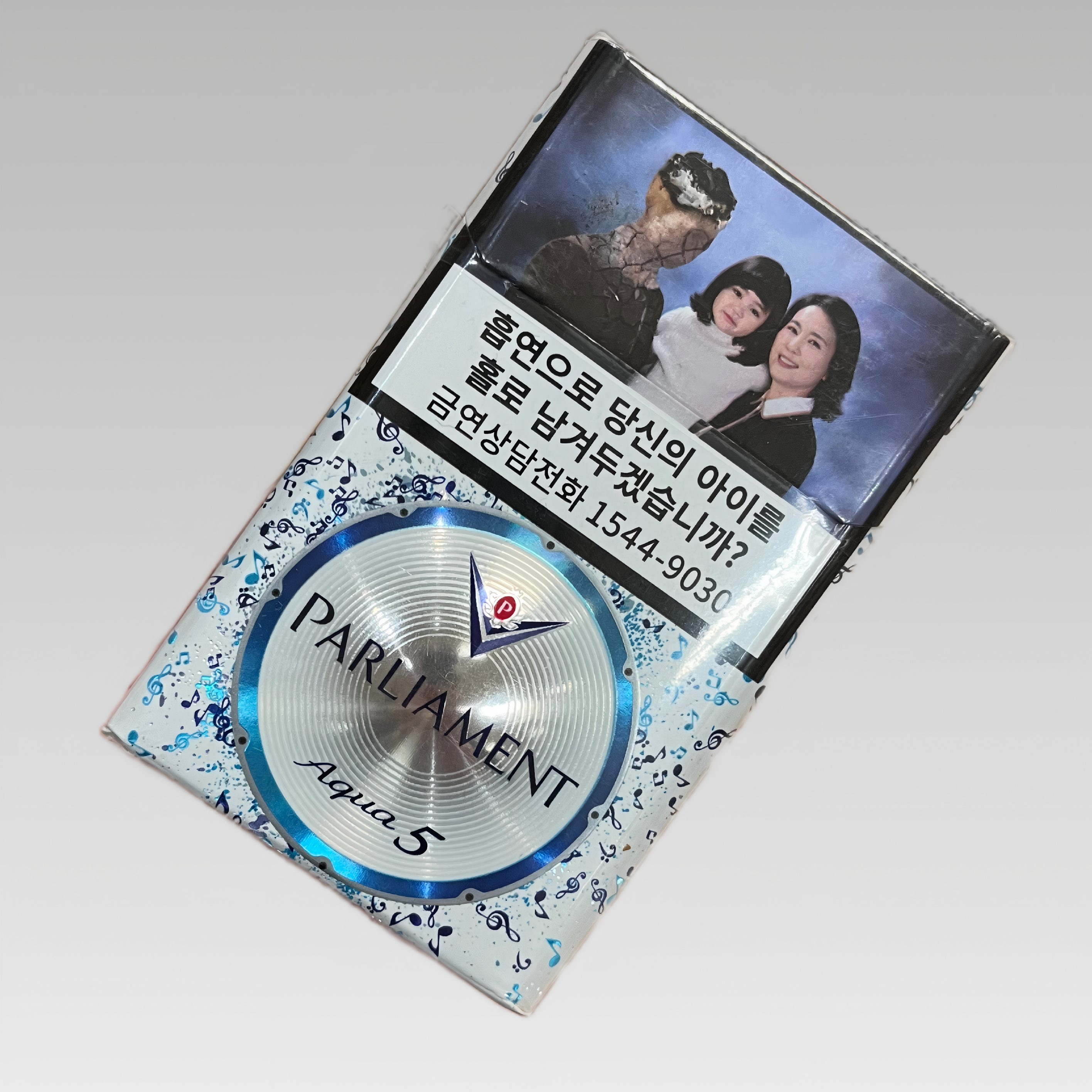

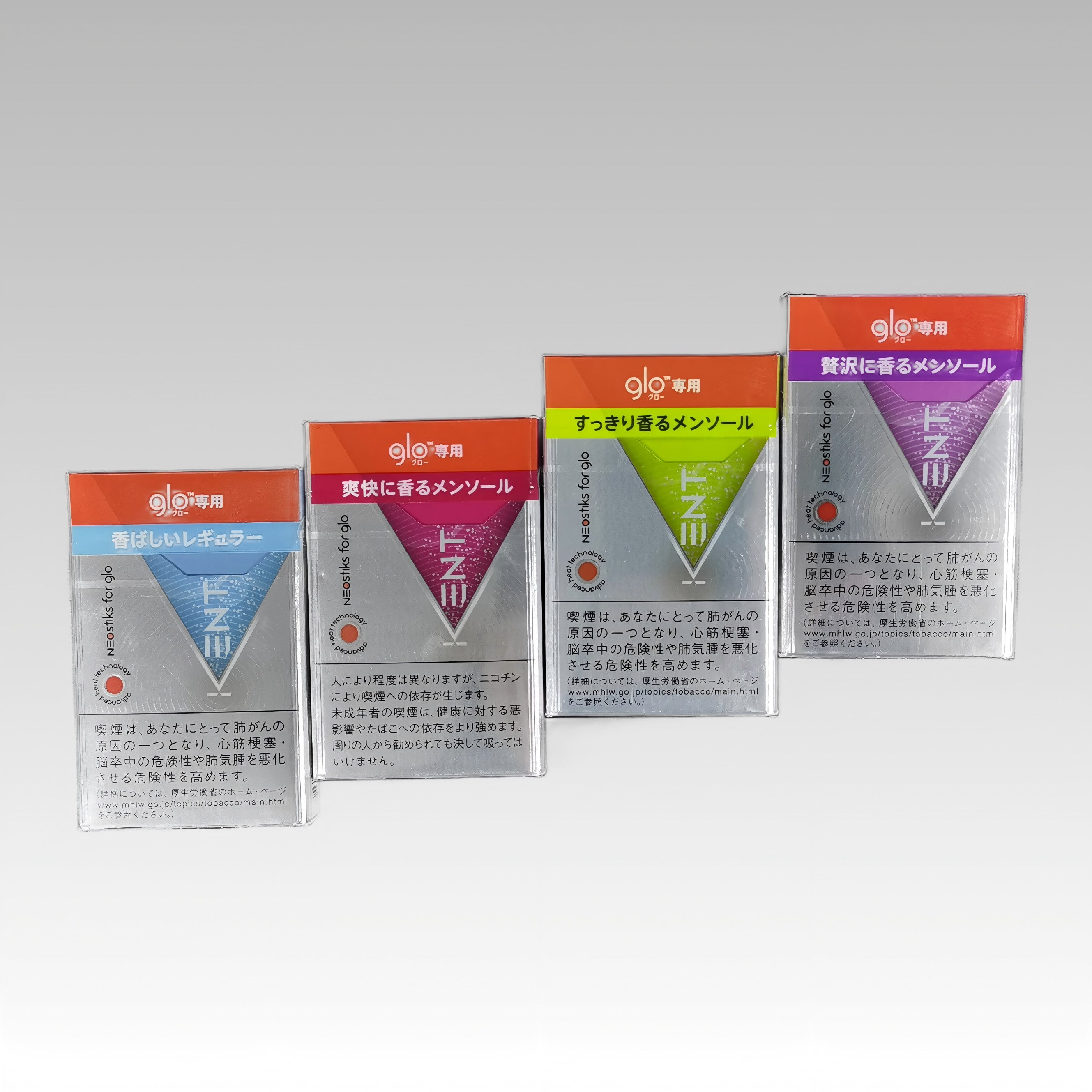

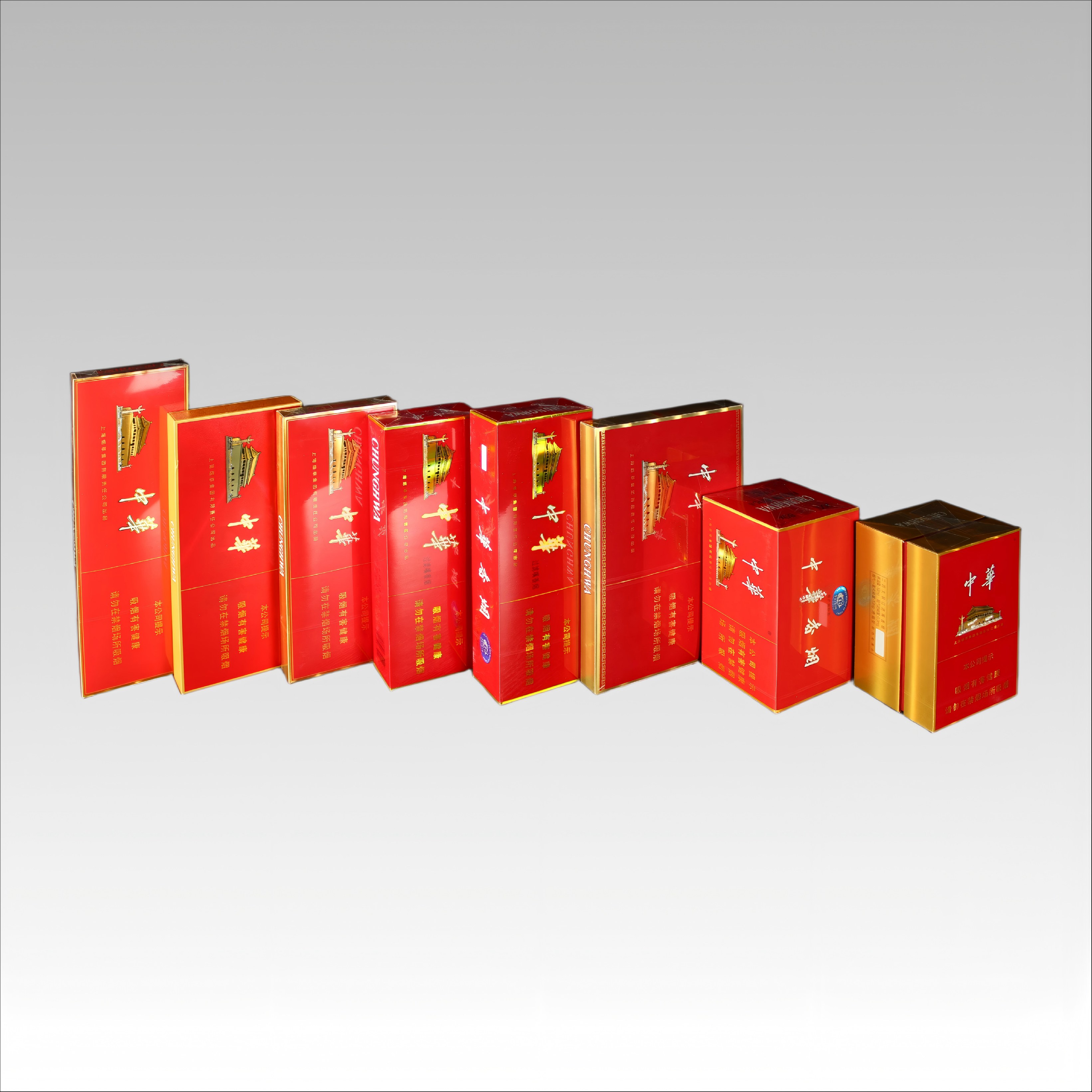

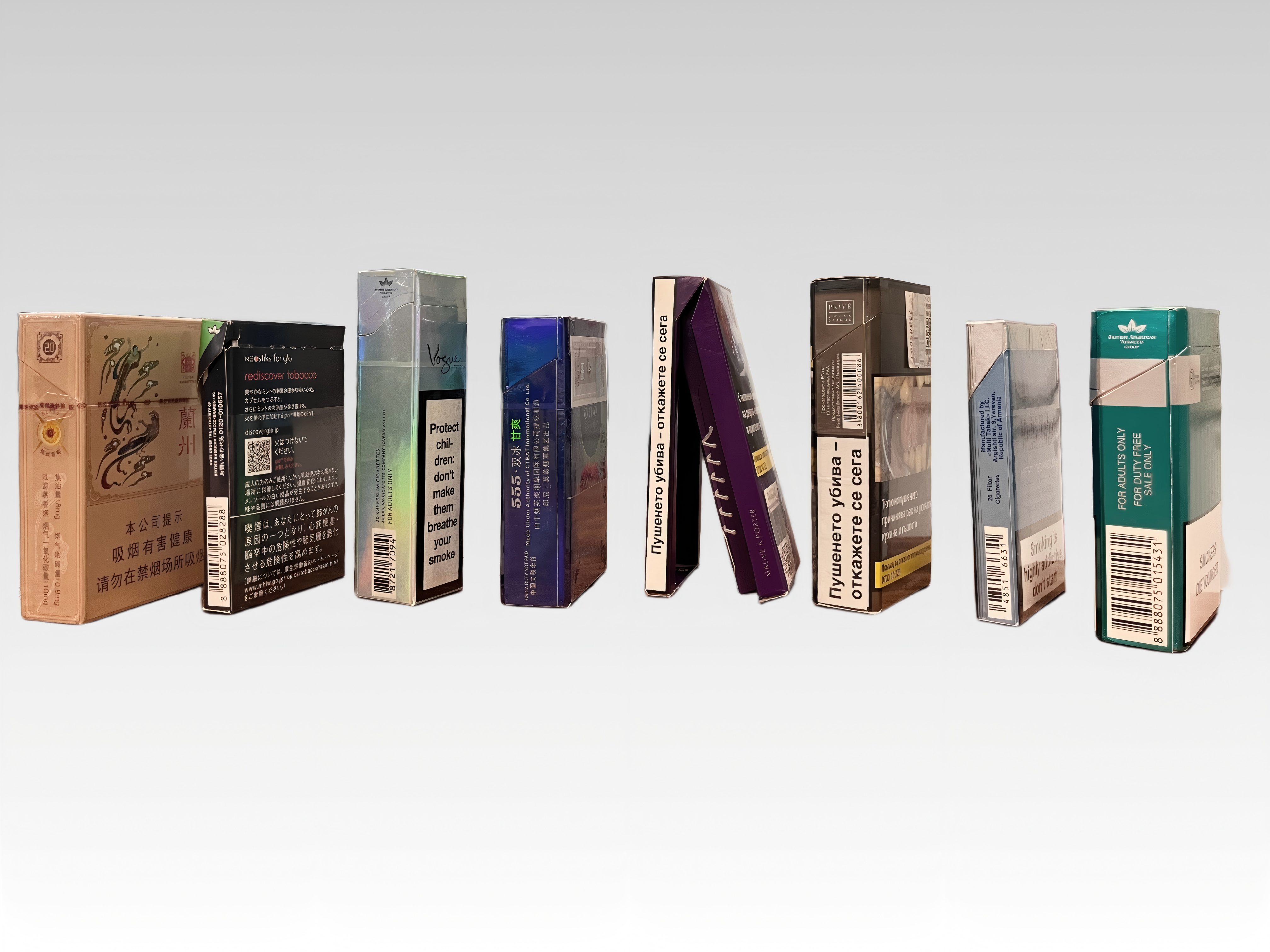

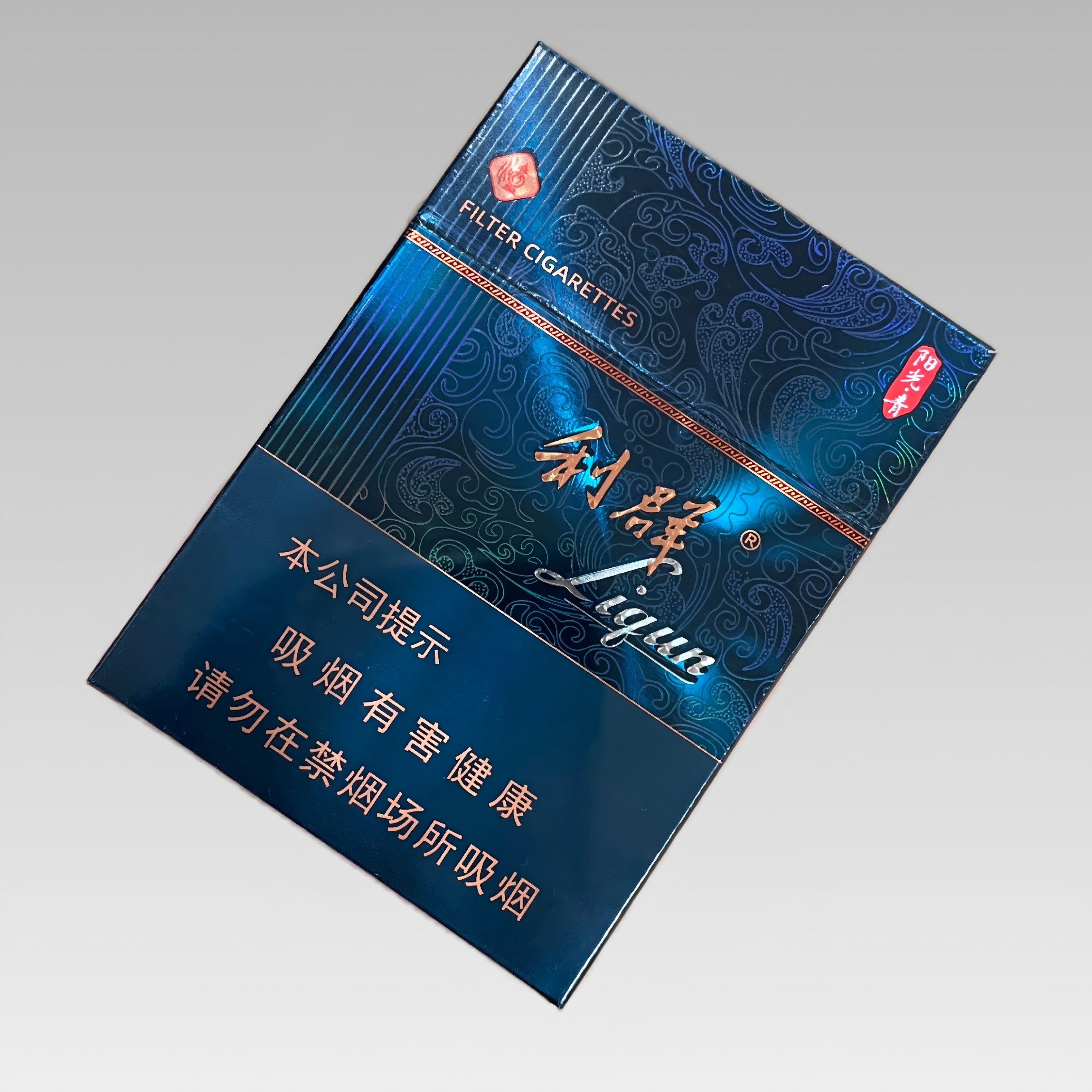

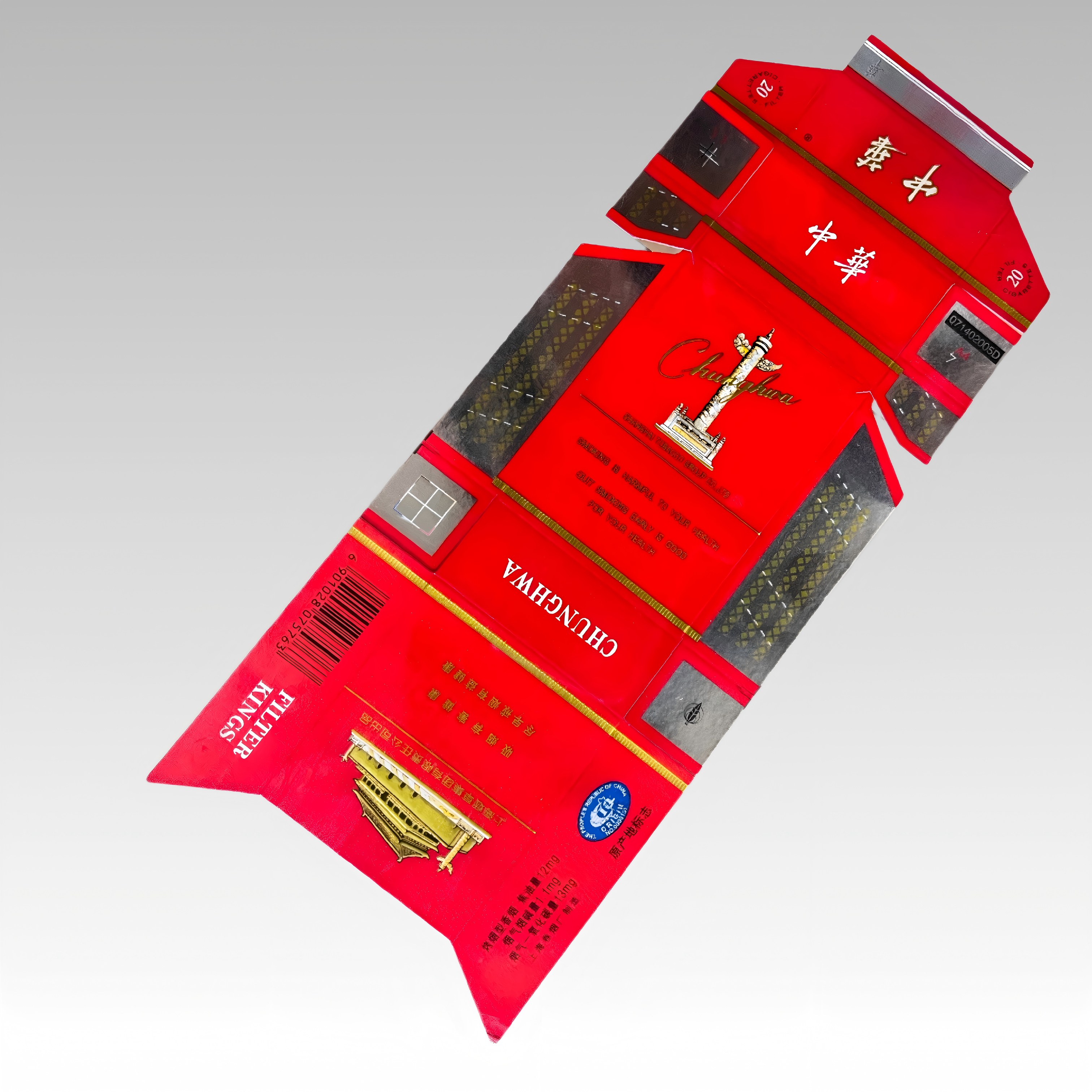

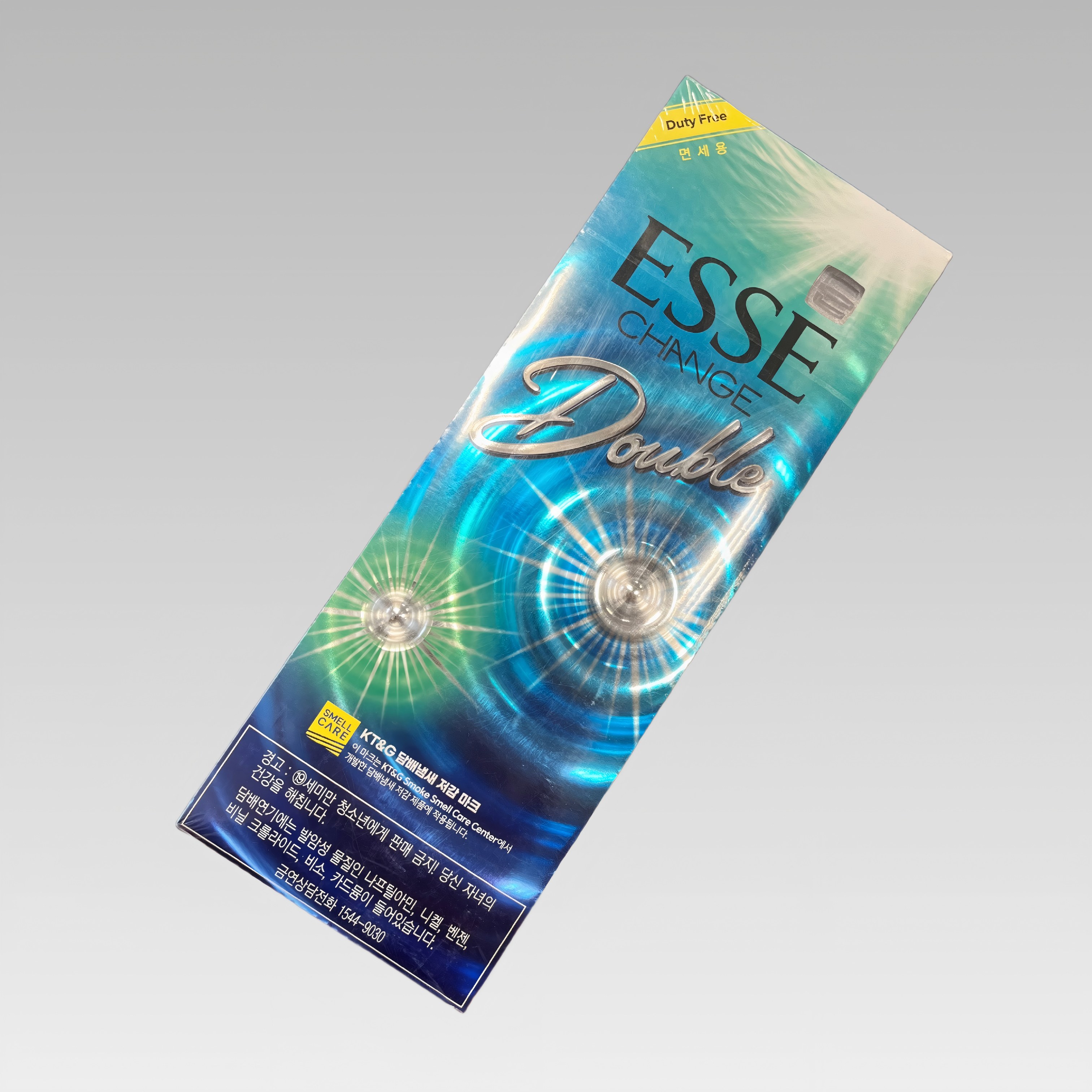

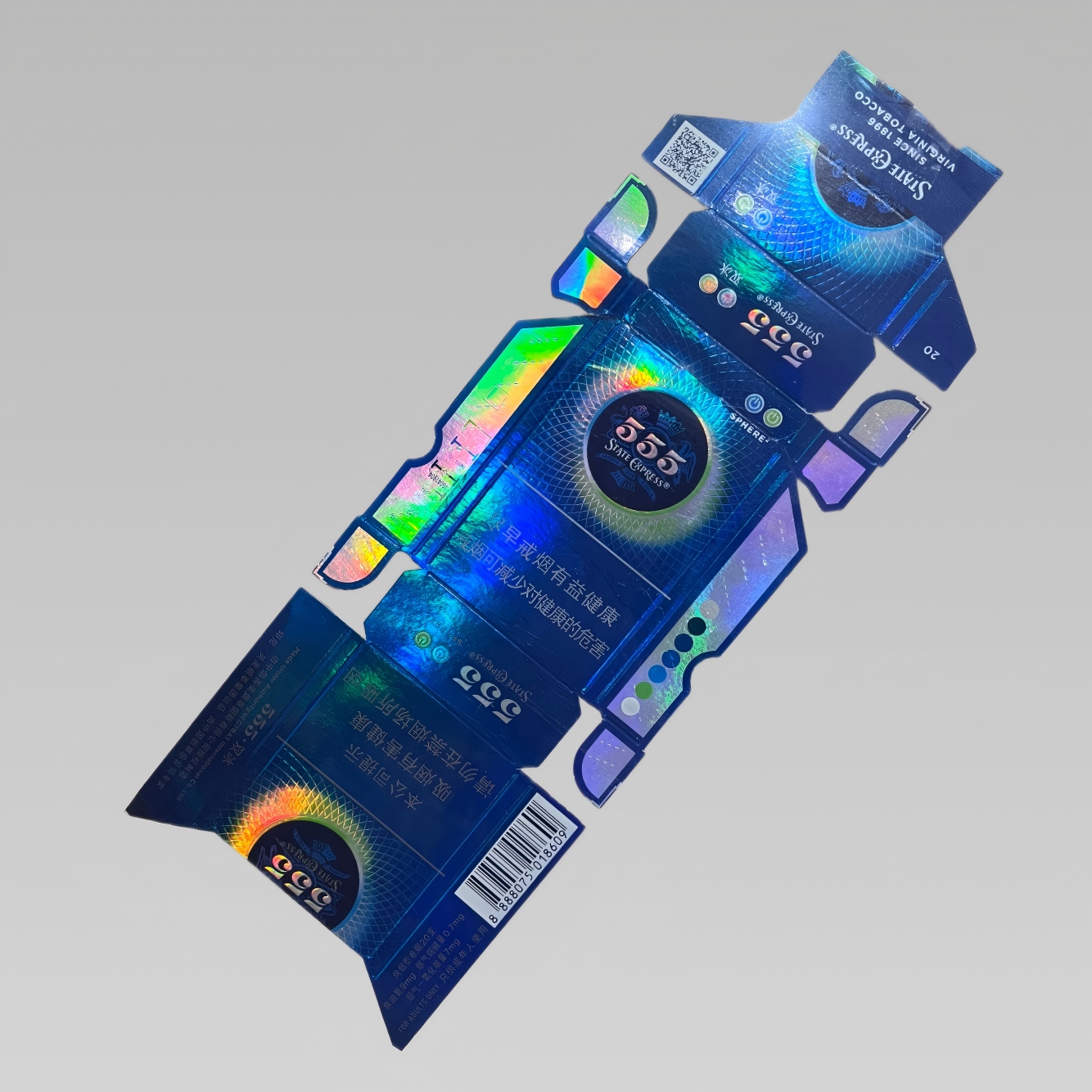

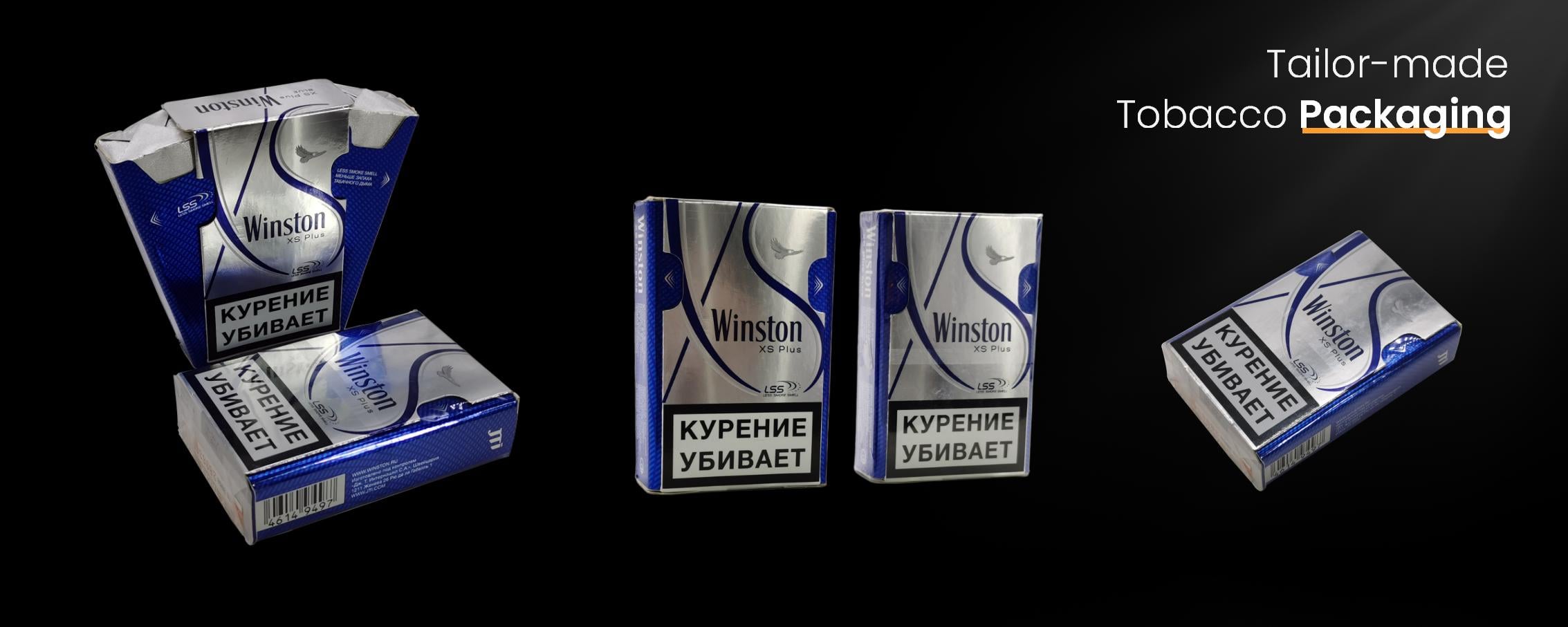

Hinge Lid Pack

Core Description
The Hinge Lid Pack (HLP) is the global industry standard for premium cigarette packaging, offering a sophisticated combination of structural durability and brand prestige. Engineered as a multi-component system, our hinge lid solutions are designed to withstand the rigors of high-speed automated production while providing a satisfying "click-to-close" tactile experience for the consumer. It serves as the ultimate protective shell, ensuring the product inside remains pristine from the factory to the final cigarette.

Product Specifications
Technical Parameter Specification Range Test Method
Material Basis Weight 230-250 g/㎡ ISO 536
Caliper(Thickness) 310-360μm ISO 534
Bending Stiffness (MD) ≥1 2.0mN·m ISO 5628
Bending Stiffness (CD) ≥6.0mN ·m ISO 5628
Bending Resistance High-Flex Cracking
Resistance
ISO 2493
Surface Smoothness (Gloss
Side)
0.5-1.0μm(PPS) ISO 8791-4
Opening Force 0.5-1.5 N (Optimized) Internal Load Cell
Ink Scuff Resistance >800 Cycles ASTM D5264
Dimensional Tolerance ±0.1 mm(Laser Die-Cut) Standard Gauge
